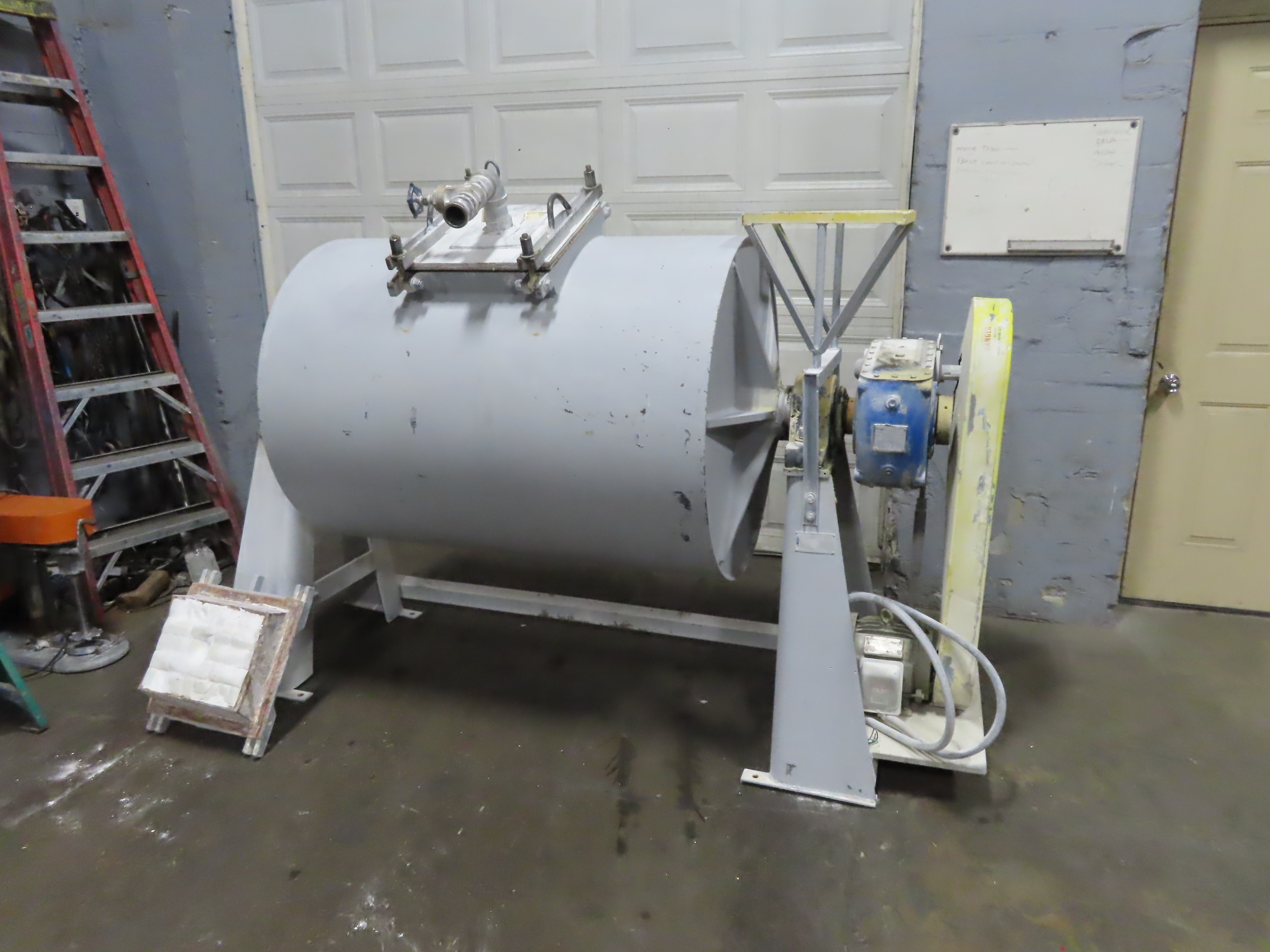

36" x 48" Paul O. Abbe Pebble Mill, On legs
Category: Ball & Pebble
Product ID: 4855
Specifications
- » One (1) used 36" X 48" Paul O. Abbe Pebble Mill
- » Model: 5A PM
- » Serial number: A38786
- » 3' diameter x 4' long chamber

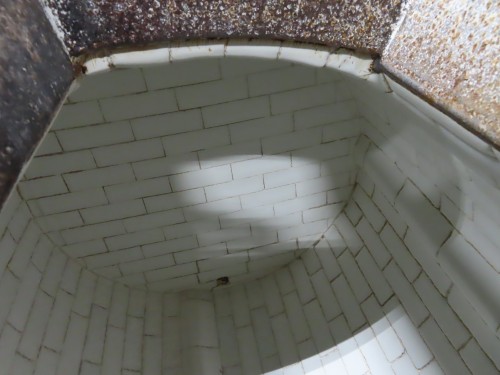

- » Alumina brick lined chamber
- » Lining is in good condition
- » Equipped with lifter bars
- » Outboard roller bearings
- » 5 HP motor, belt driven to a shaft mounted gear reducer
- » On short legs

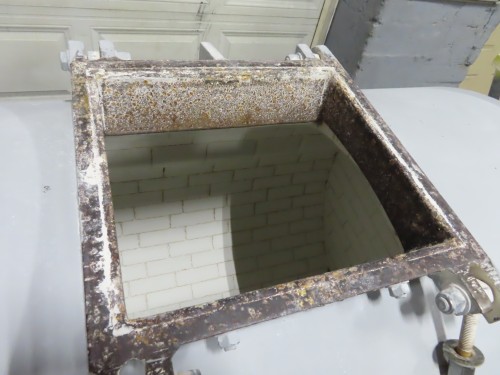

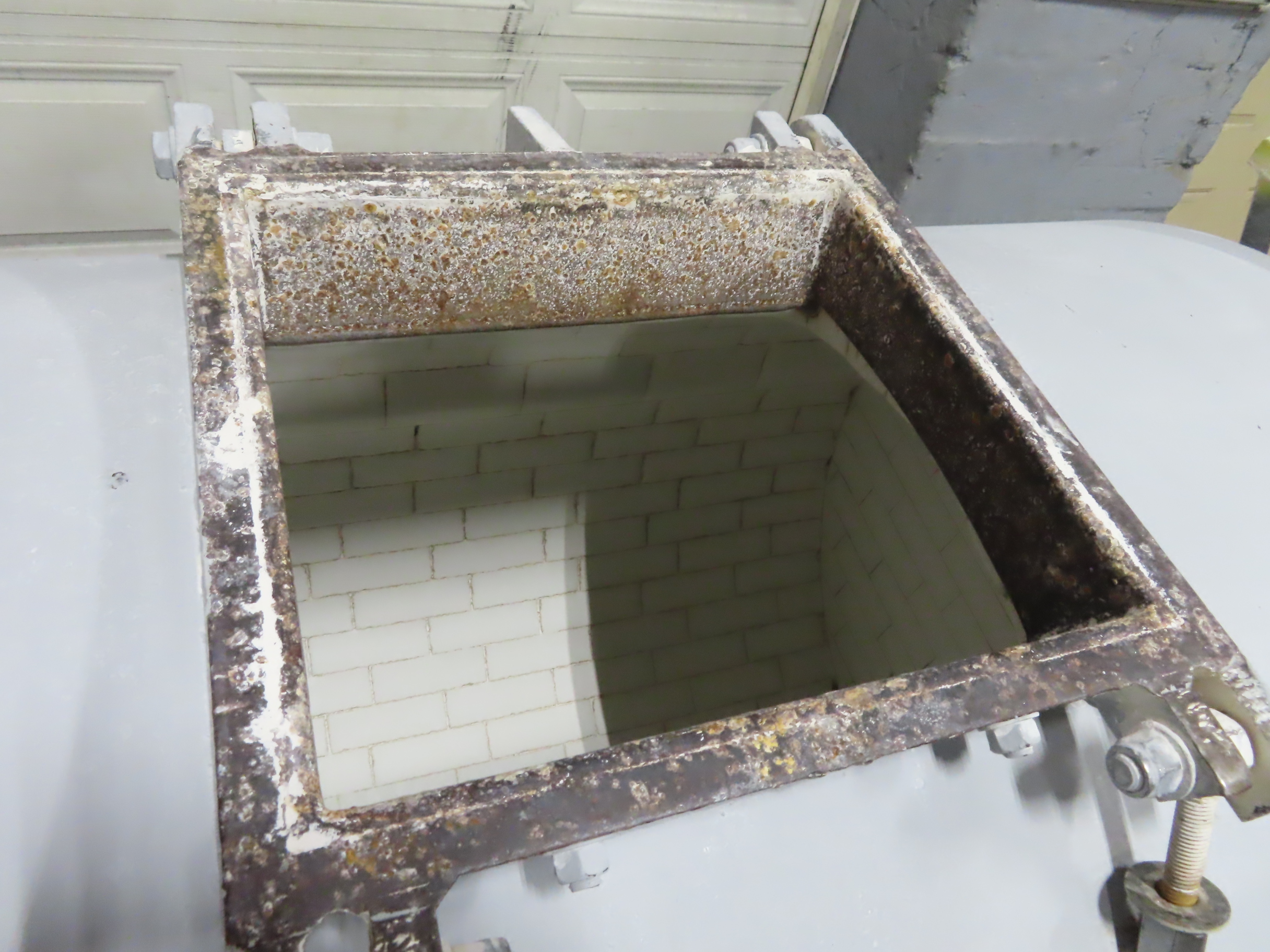

- » Equipped with grinding door and drain door
- » Door opening: 13" x 14.5"
- » Approximately 57" from floor to top of mill chamber
- » Footprint: 94.5" x 38"
- » Test ran on 3 phase, 230V
- » Test run video: https://youtu.be/gpEkVaA5c7k
