3 ft long, 62 sq ft Stainless Steel Shell and Tube Heat Exchanger
Category: Heat Exchangers
Product ID: 4815
Specifications

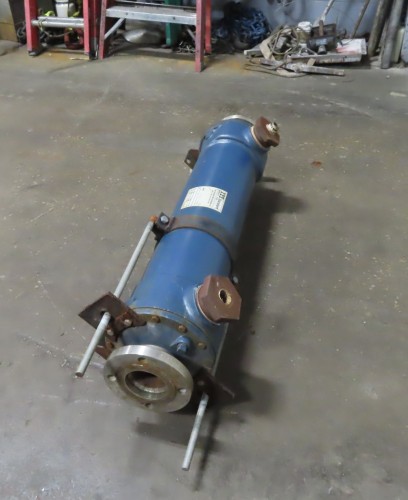

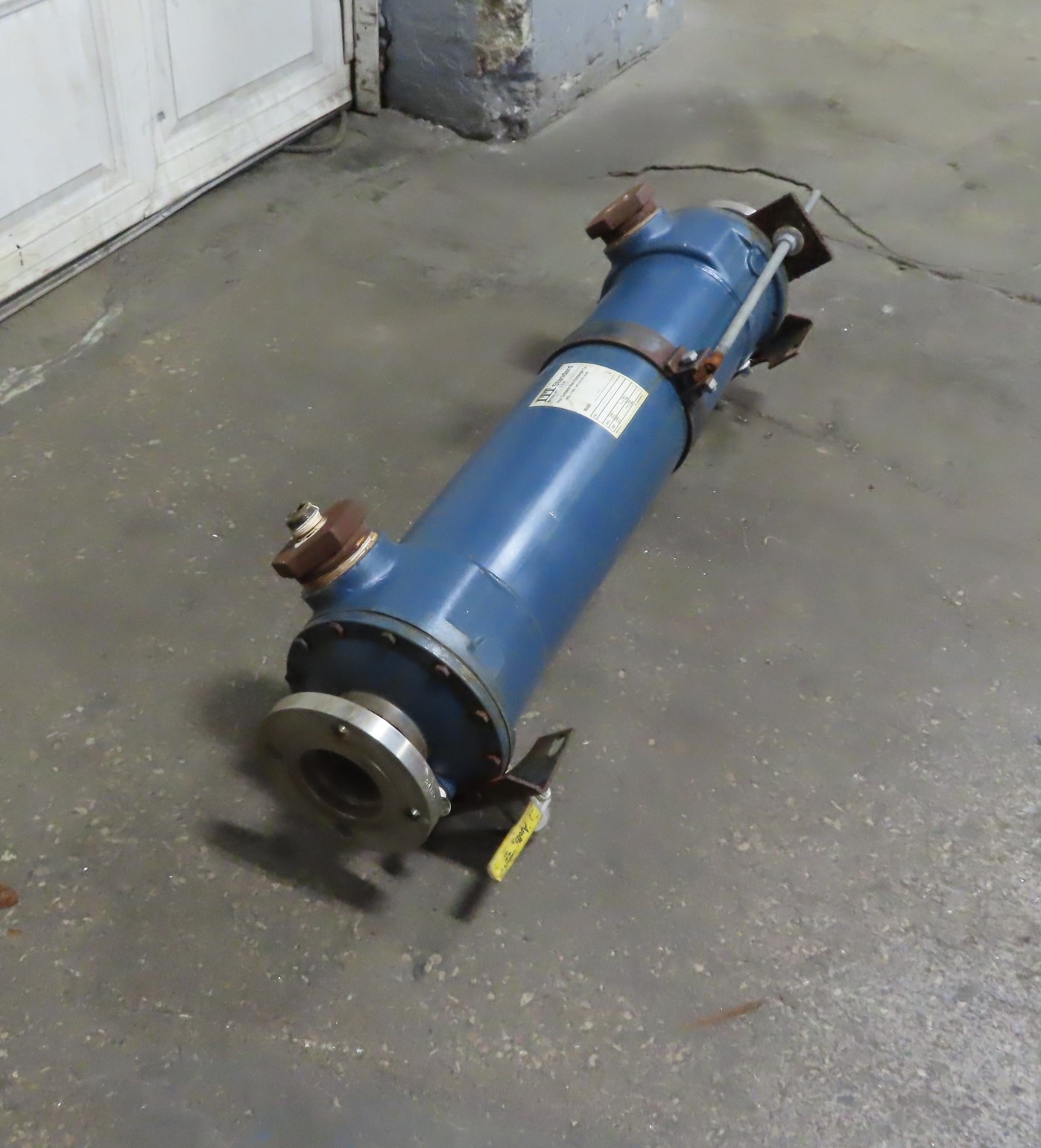

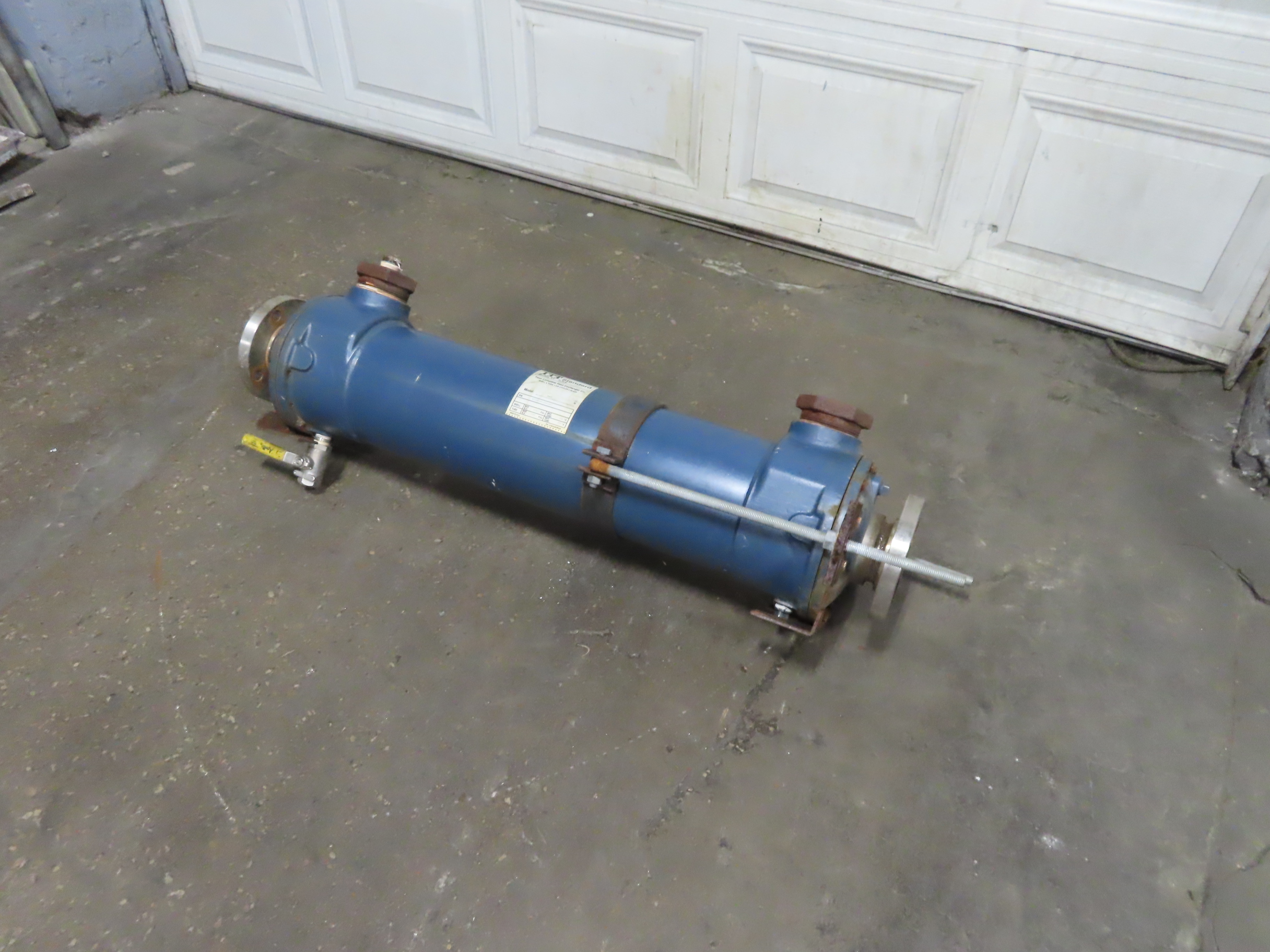

- » One (1) used 3 ft. long, 60 sq. ft. Shell and Tube Heat Exchanger

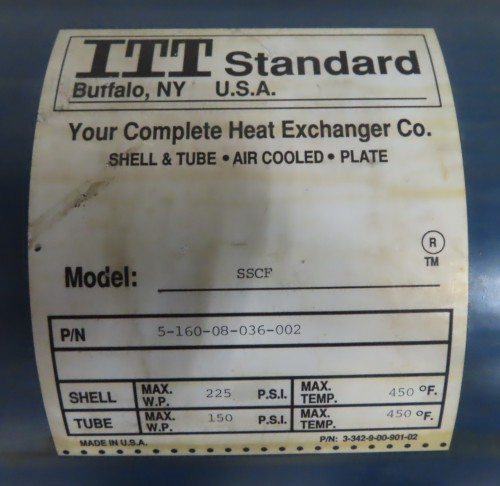

- » Manufactured by ITT Standard
- » Model SSCF
- » P/N 5-160-08-036-002
- » Stainless steel tubes and shell

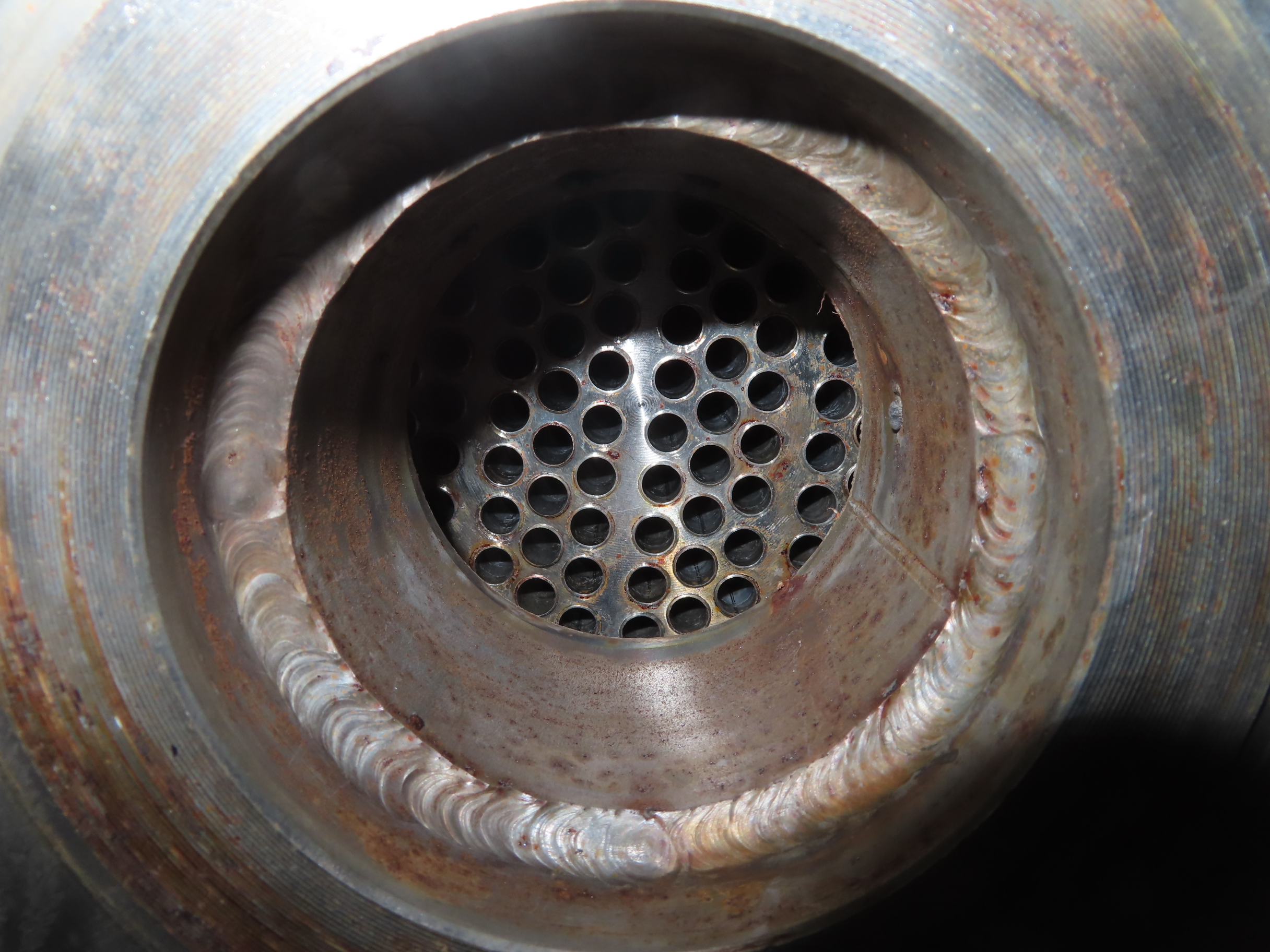

- » 3/8" diameter tubes by 36" long
- » Approximate heat exchanger area: 60 sq. ft.
- » Shell Max WP: 225 psi, max temp. 450 F
- » Tubes Max WP: 150 psi, max temp. 450 F
- » Heads have 3" diameter stainless steel flanges
- » Shell has 3.5" threaded inlet/outlet, reduced down to 1"
- » Last used in a vertical position above a 750 gallon reactor (item 4710)
