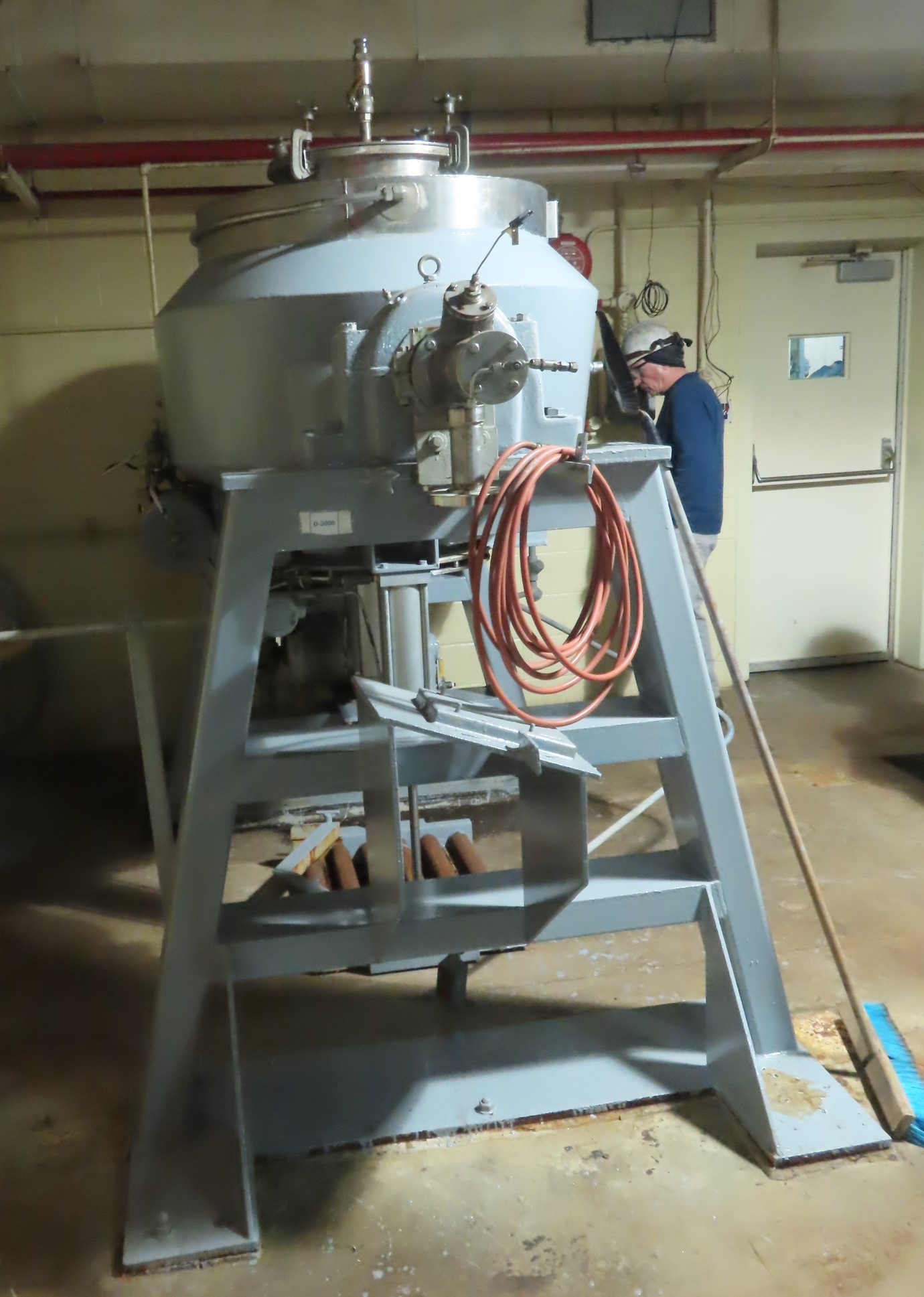

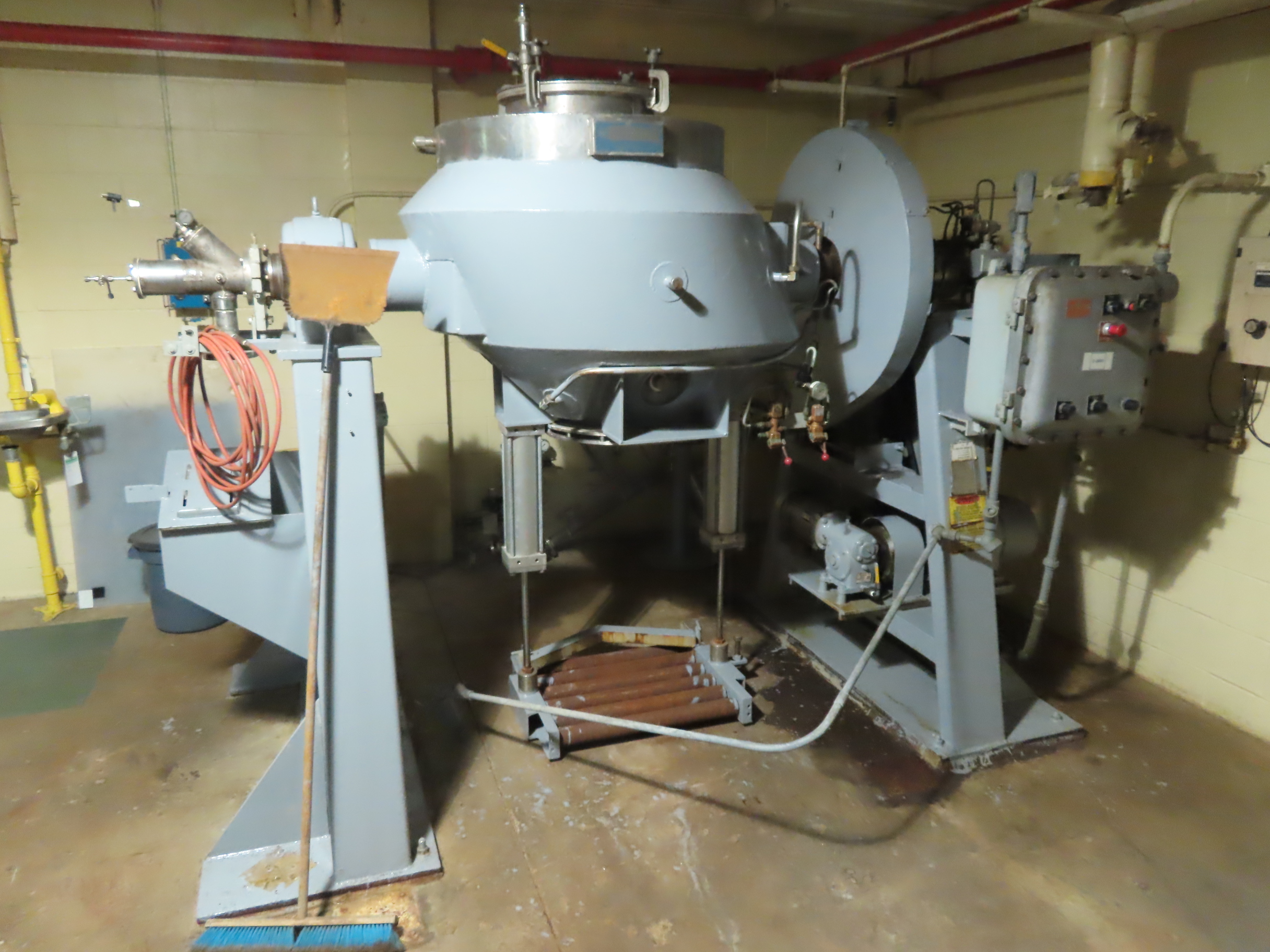

Gemco Slant Cone Rotary Vacuum Dryer, 10 cu. ft., with Gemcomatic Drum Loading System
Category: Misc.
Product ID: 4811
Specifications
- » One (1) 10 cu. ft. Gemco Slant Cone Rotary Vacuum Dryer
- » 10 cu. ft. working capacity, slant cone dryer

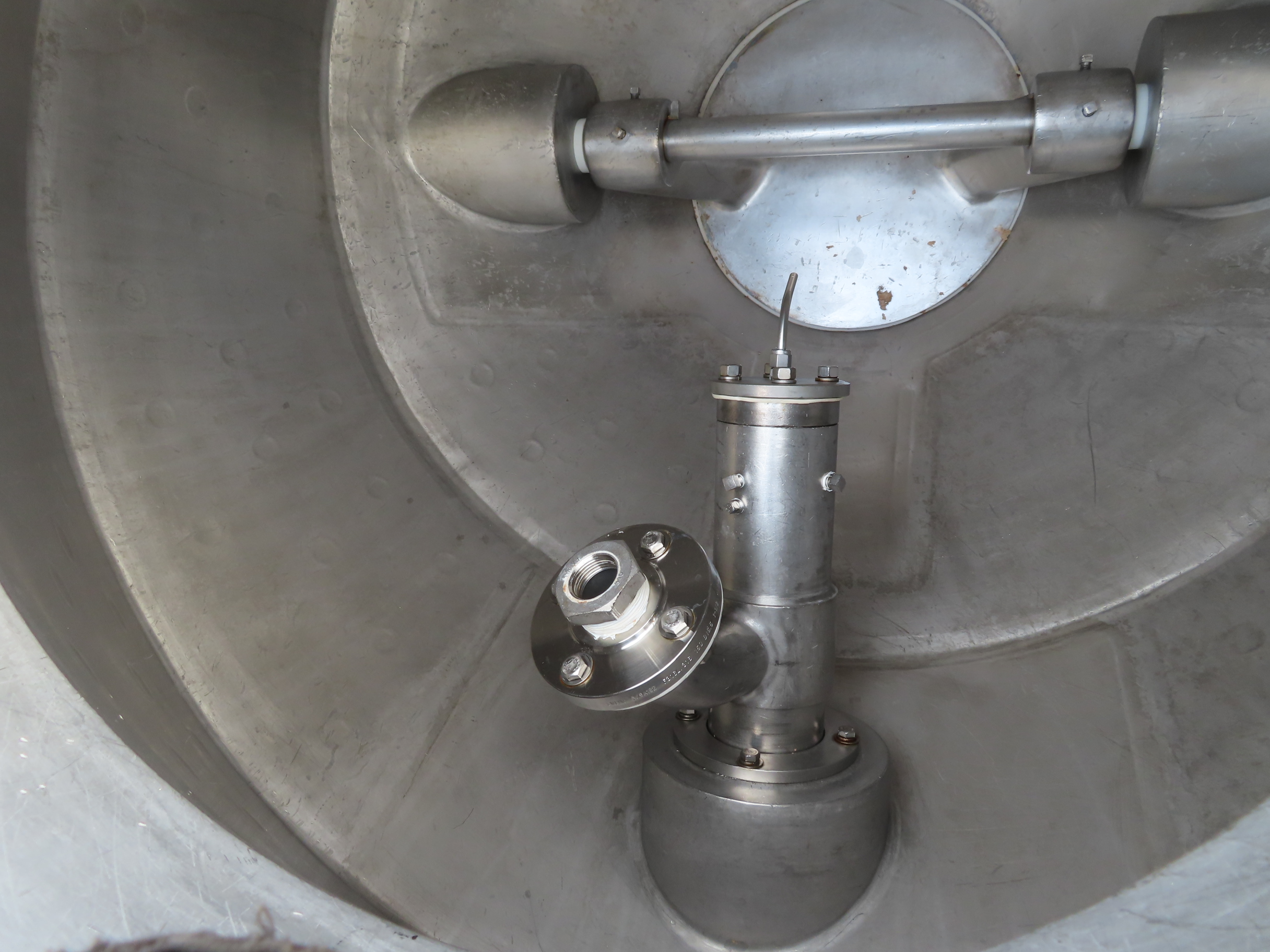

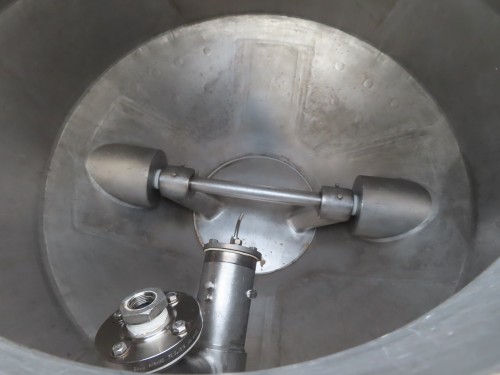

- » 316L stainless steel polished interior
- » Carbon steel dimple jacket
- » Internal finish is polished and welds are ground smooth
- » National Board stamp 1925
- » Internal Pressure Rating: Full vacuum @ 350 F
- » Jacket Pressure Rating: 100 psi @ 350 F
- » ASME Code stamped
- » RAted for 100 lbs. per cu. ft. material density
- » Removable access door: 18.25"
- » Gemcomatic drum loading system
- » Loading and unloading door: 14" with air operated valve
- » Max drum: 24" diameter x 35"
- » Min drum: 15" x 26"
- » Includes rotary union
- » Vacuum pump is not included
- » High speed bar is no longer there, nor is the drive
- » Dryer drive is 3 HP, Reeves variable speed drive
- » XP tagged drive motor for hazardous location

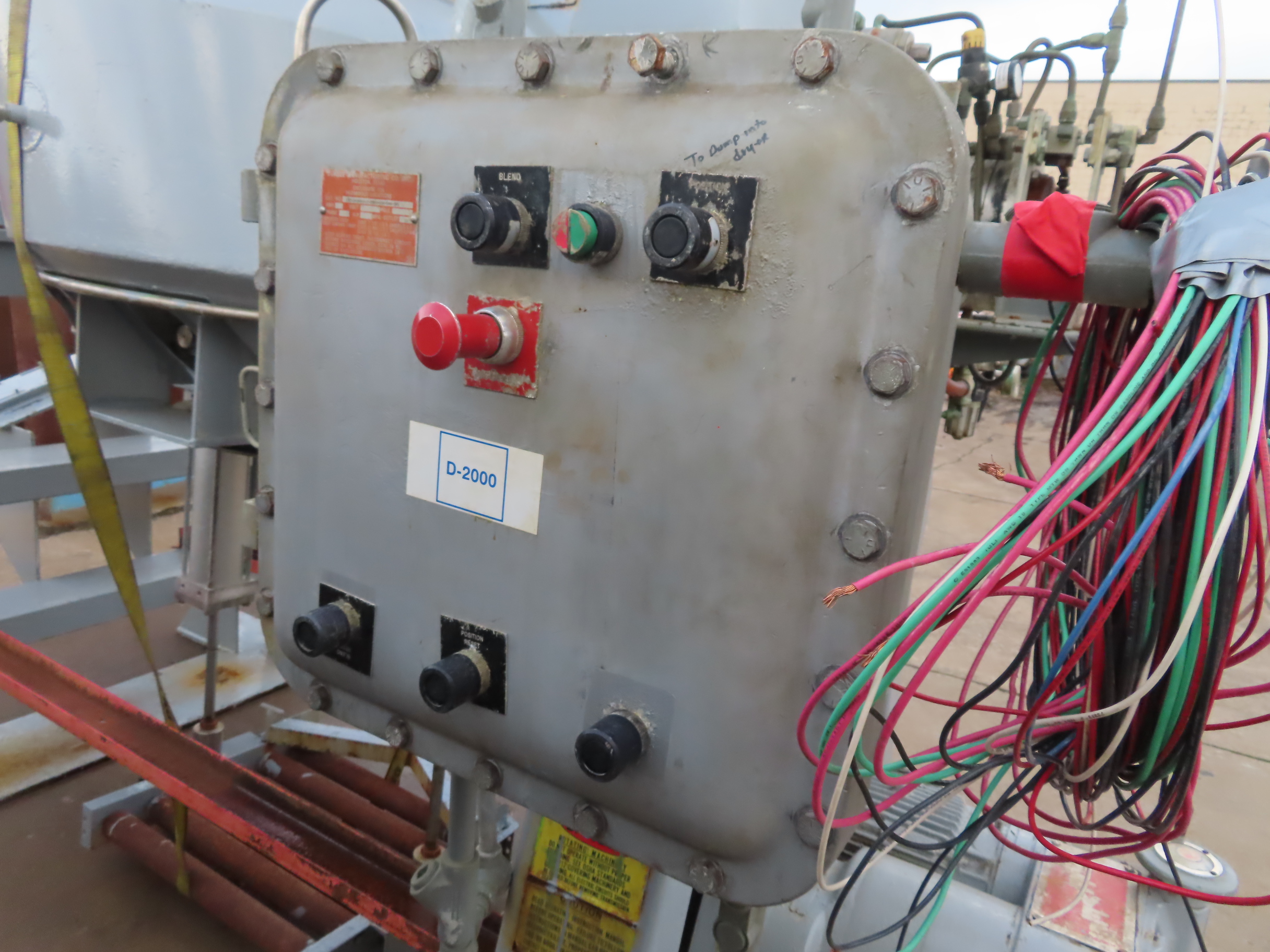

- » Push button control panel is mounted on stand, for hazardous location
- » Pillow block bearings
- » Bull gear and pinion gear with guard

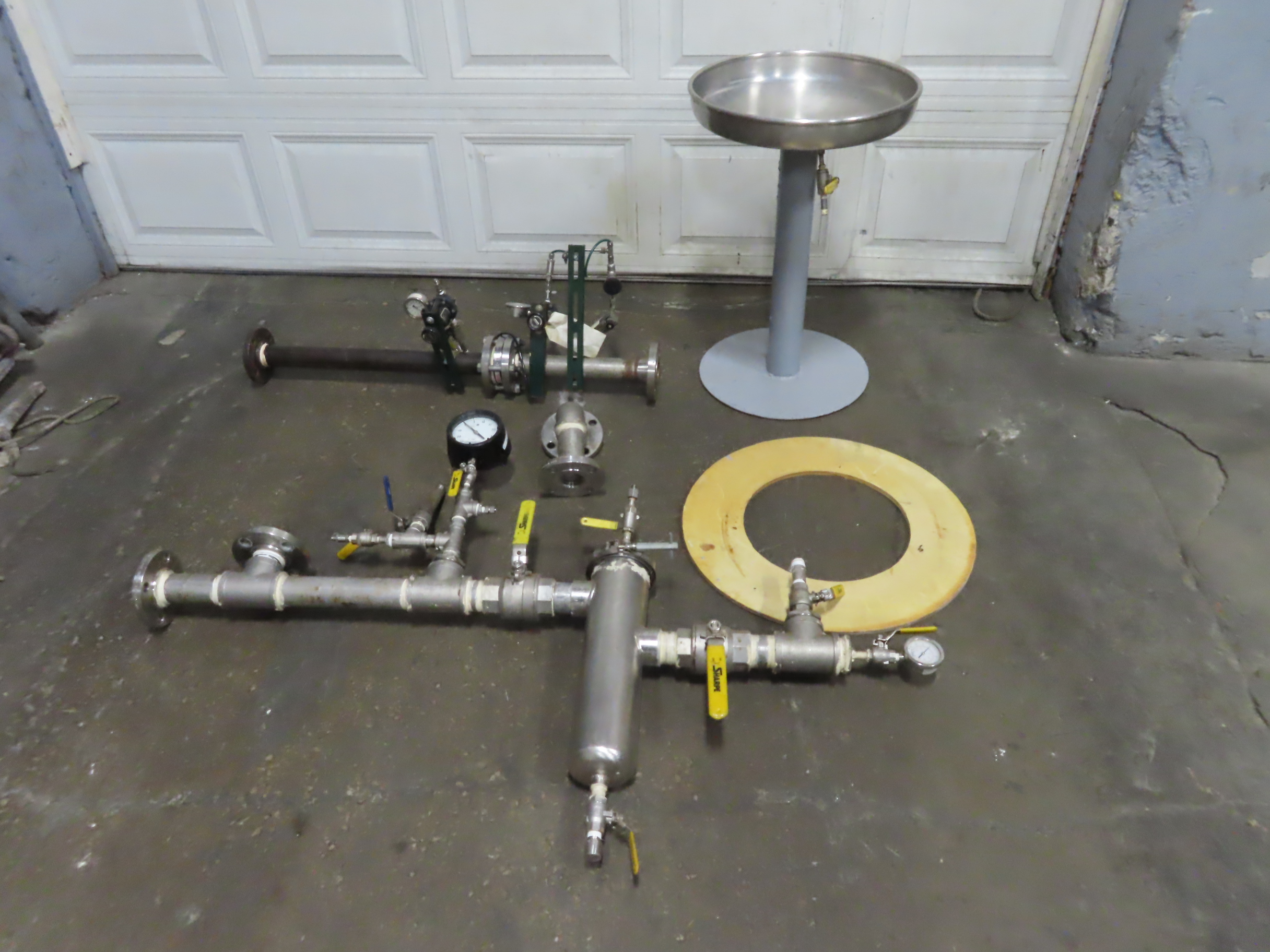

- » Misc. stainless steel piping and valves are included
- » We will run drive prior to shipping

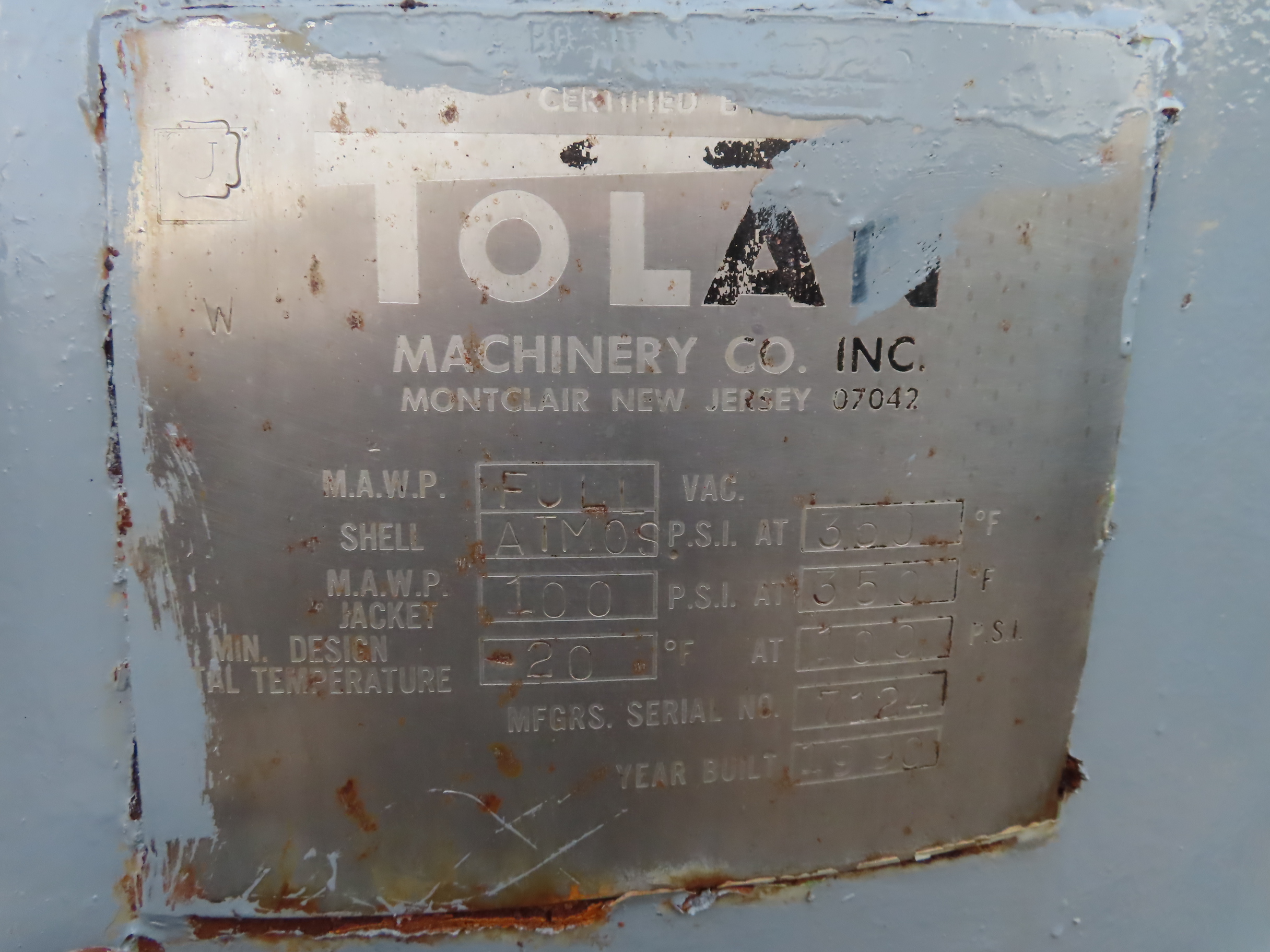

- » Shell serial number 7124

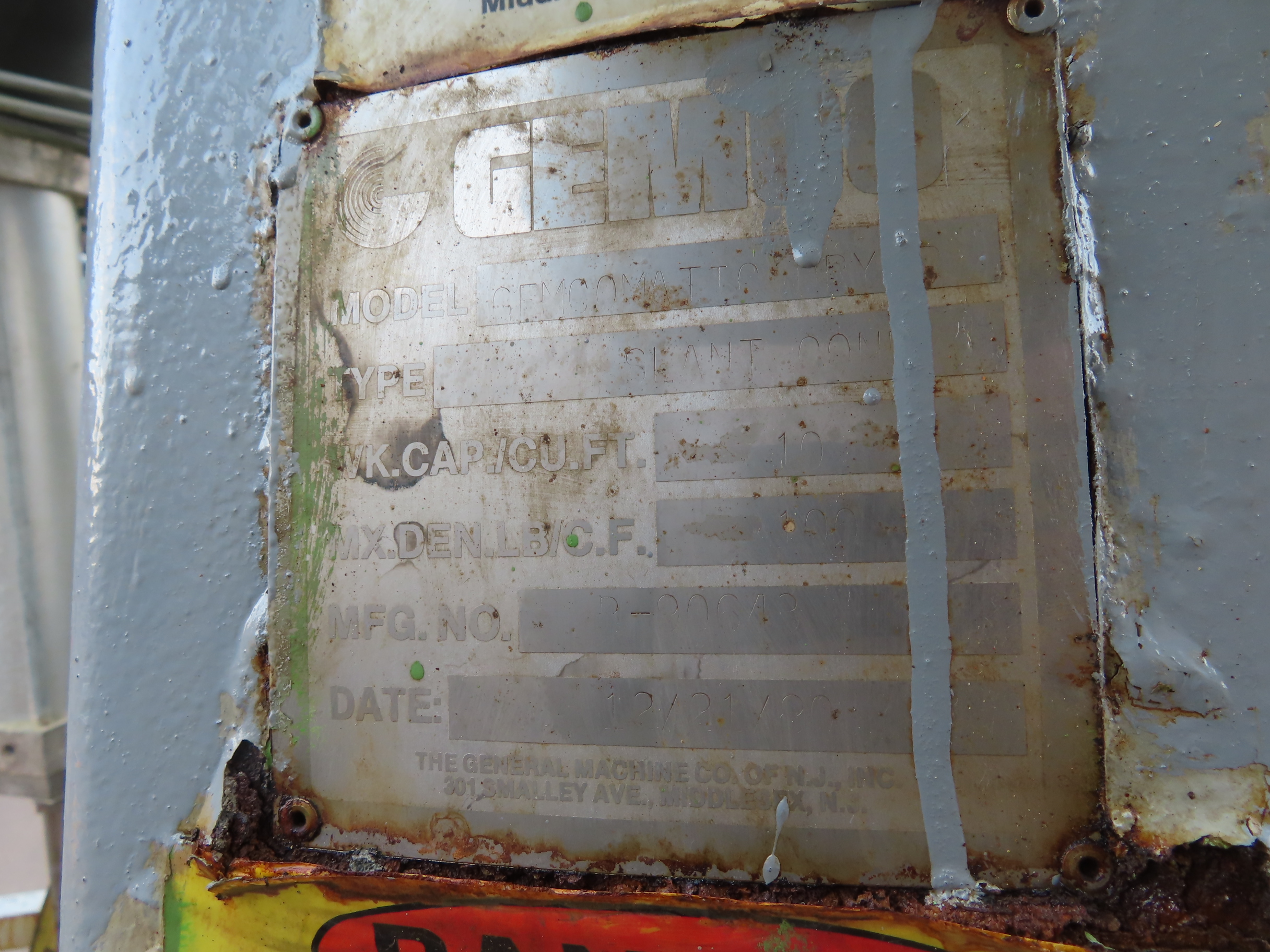

- » Mfg. number B 90643
- » Built 1990
