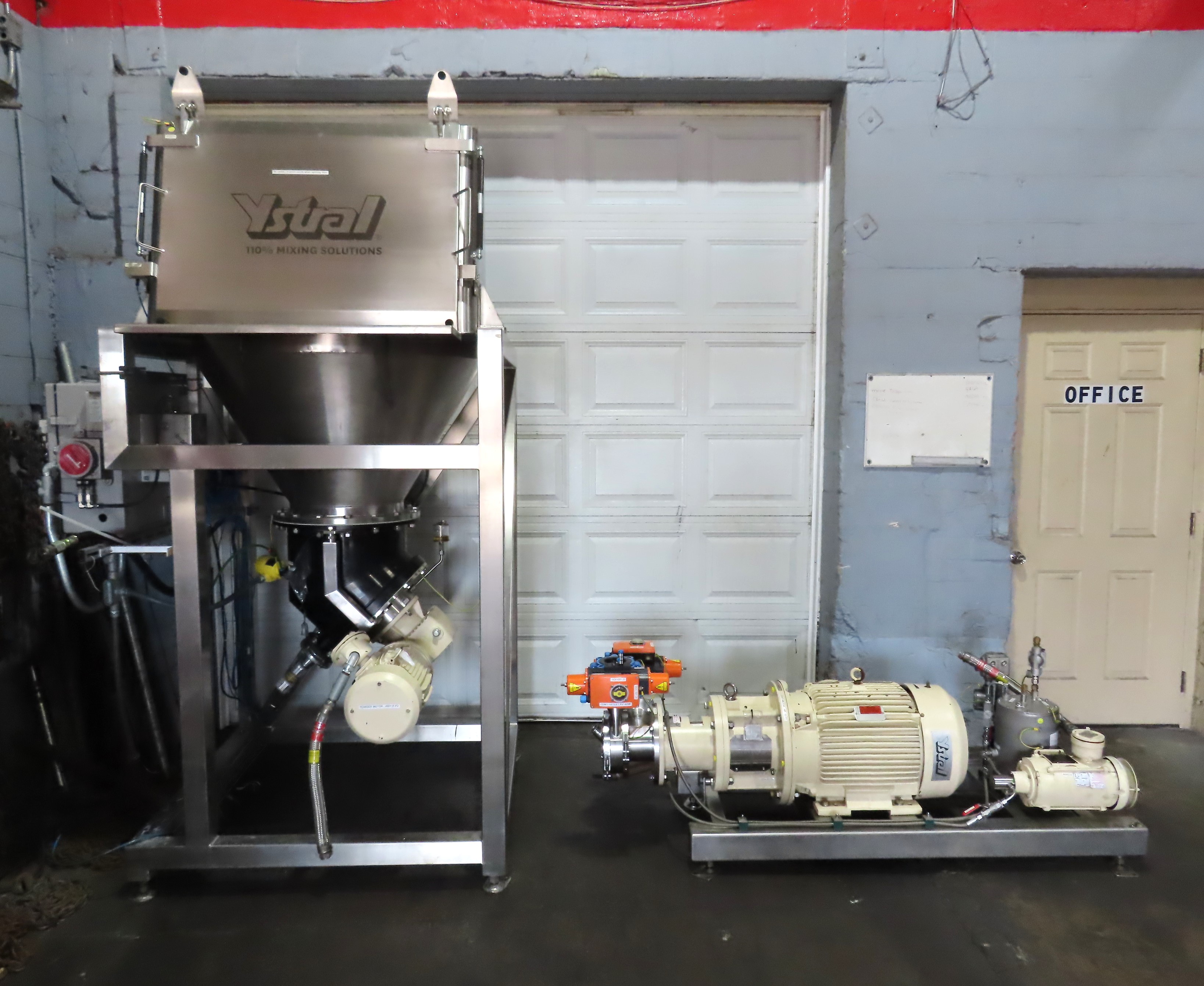

40 hp Ystral Conti TDS-3 inline homogenizing processing unit
Category: Dispersers - High Speed - Paint and Ink
Product ID: 5332
Specifications

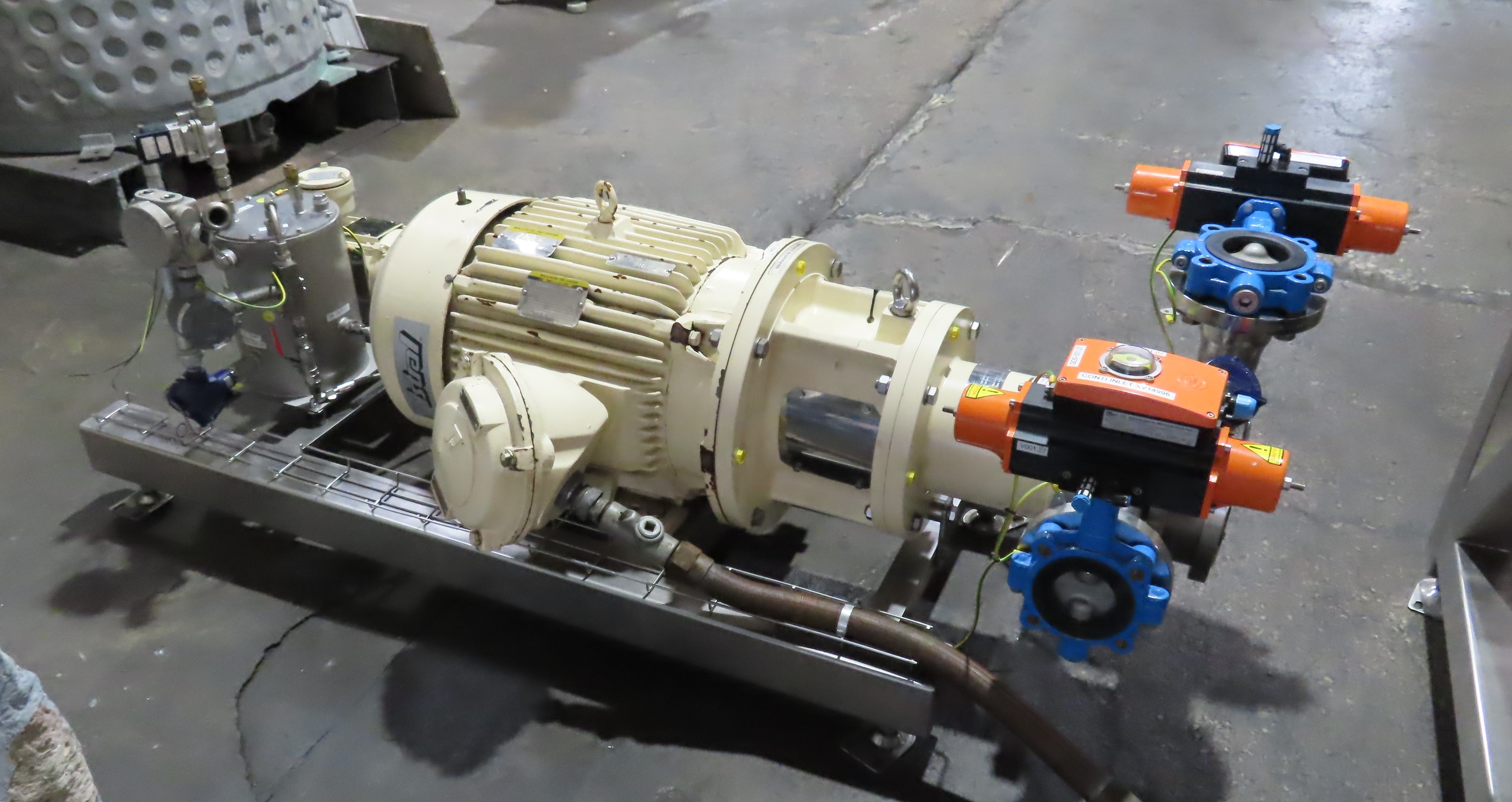

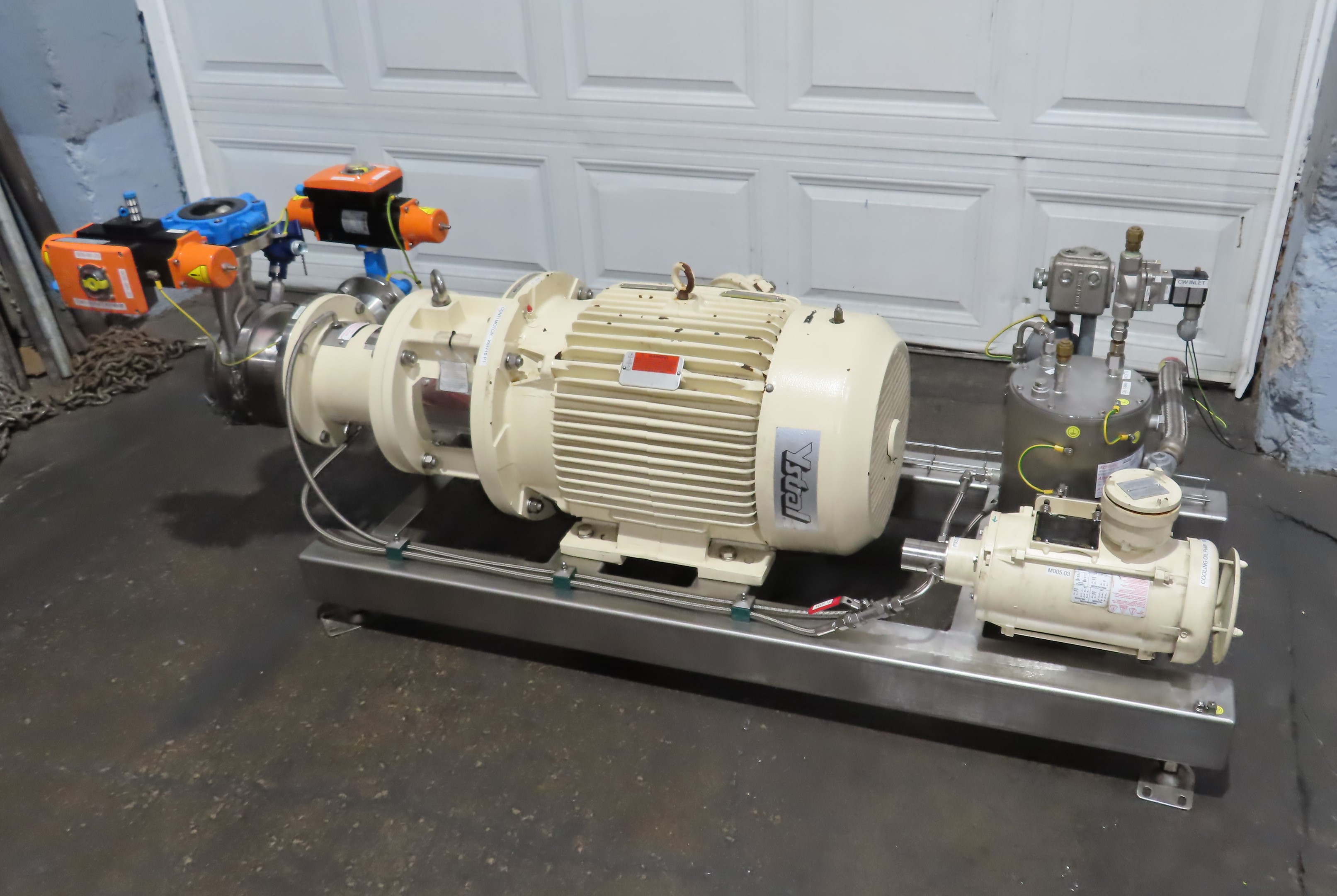

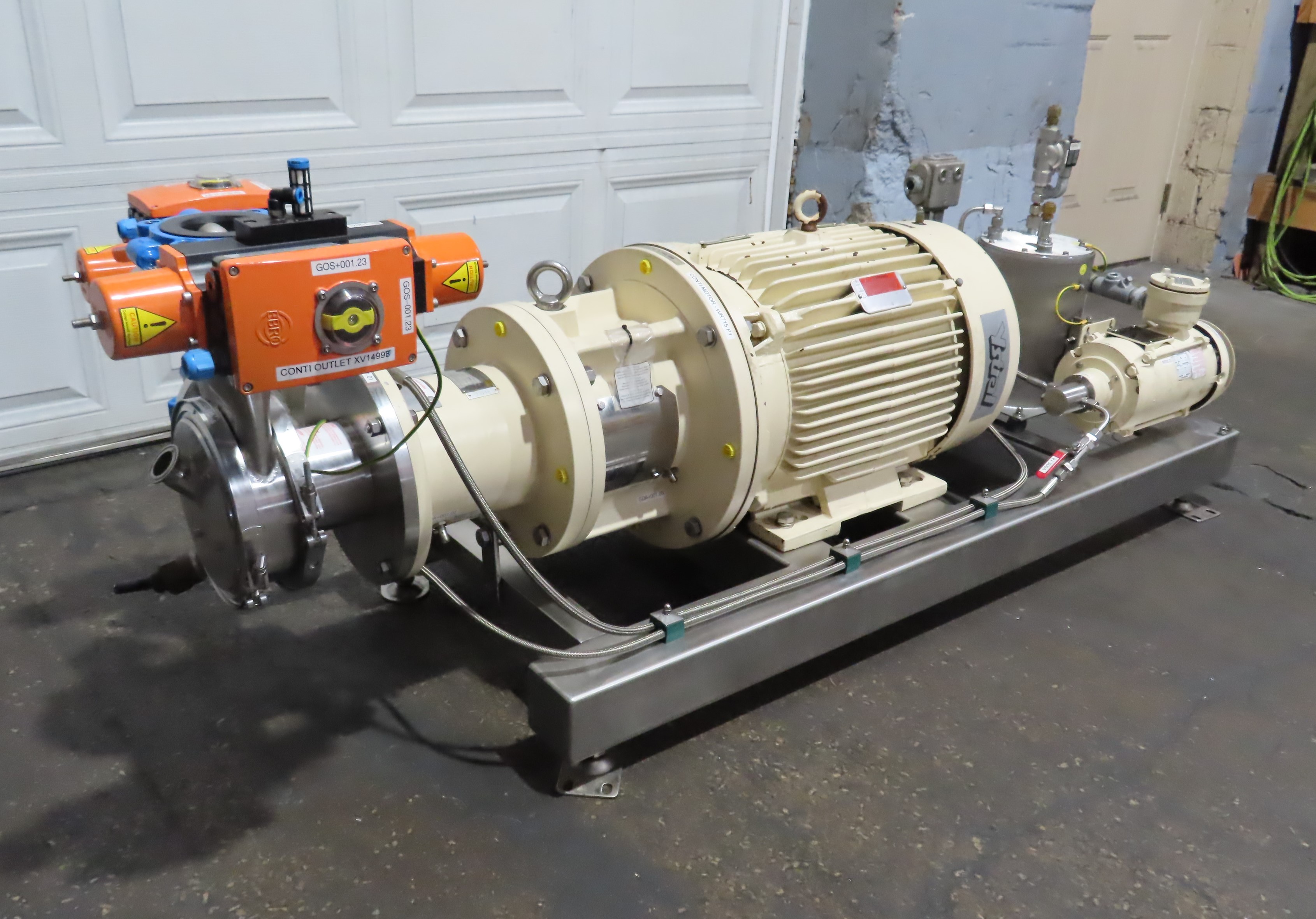

- » one(1) used 40 hp Ystral Conti-TDS-3 inline homogenizing dispersing unit
- » Designed for induction, dispersion & complete wetting of powders into liquids
- » 40 hp Motor inline with rotor stator.
- » 3 phase, with inverter, 460 voltage, 3550 rpm, XP tagged motor

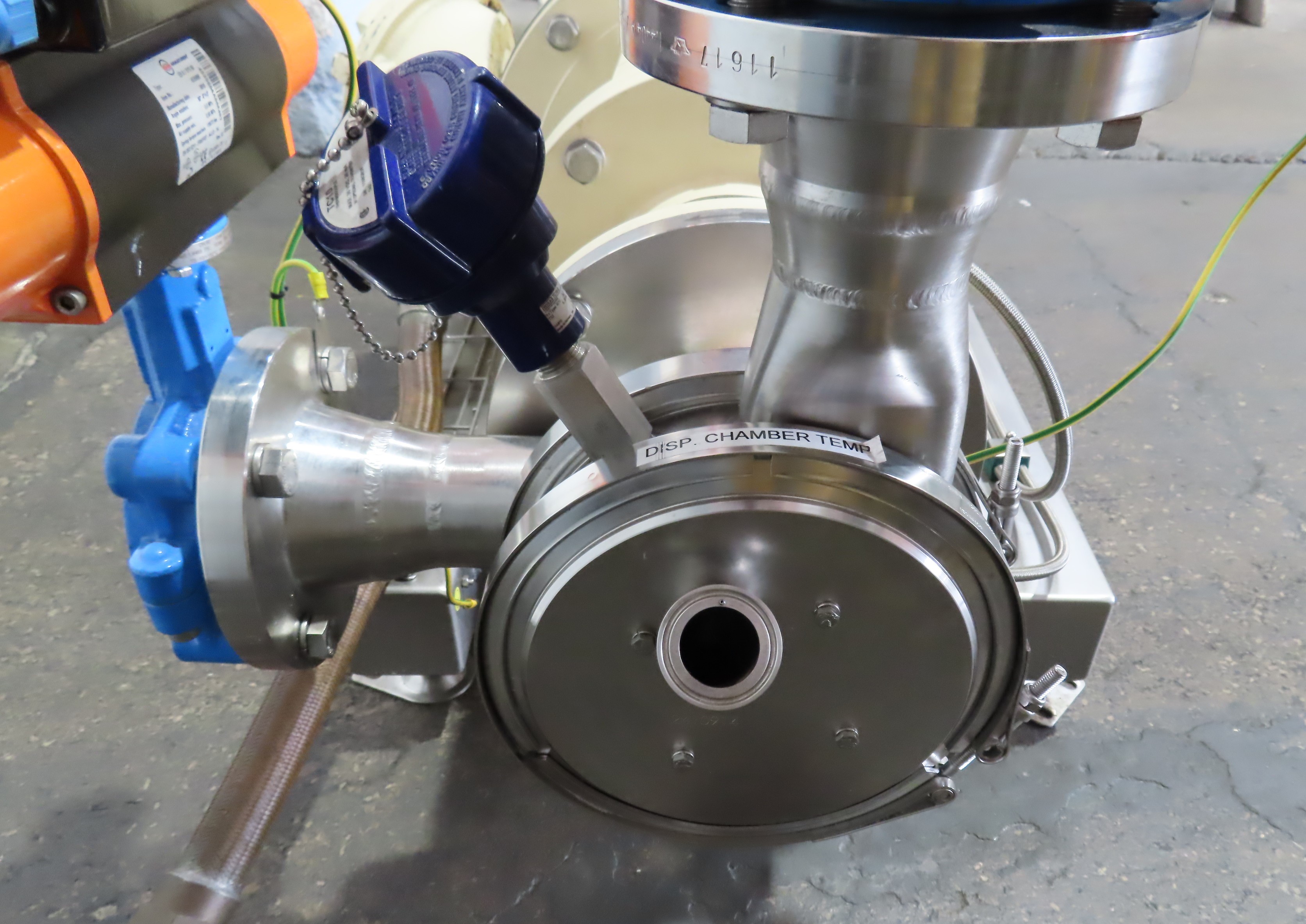

- » Rotor Stator chamber is 170mm (6.69") diameter, with temperature sensor
- » Chamber and contact parts are 316 Ti stainless steel
- » (better for high temperature & resistant to oxidation and corrosion)

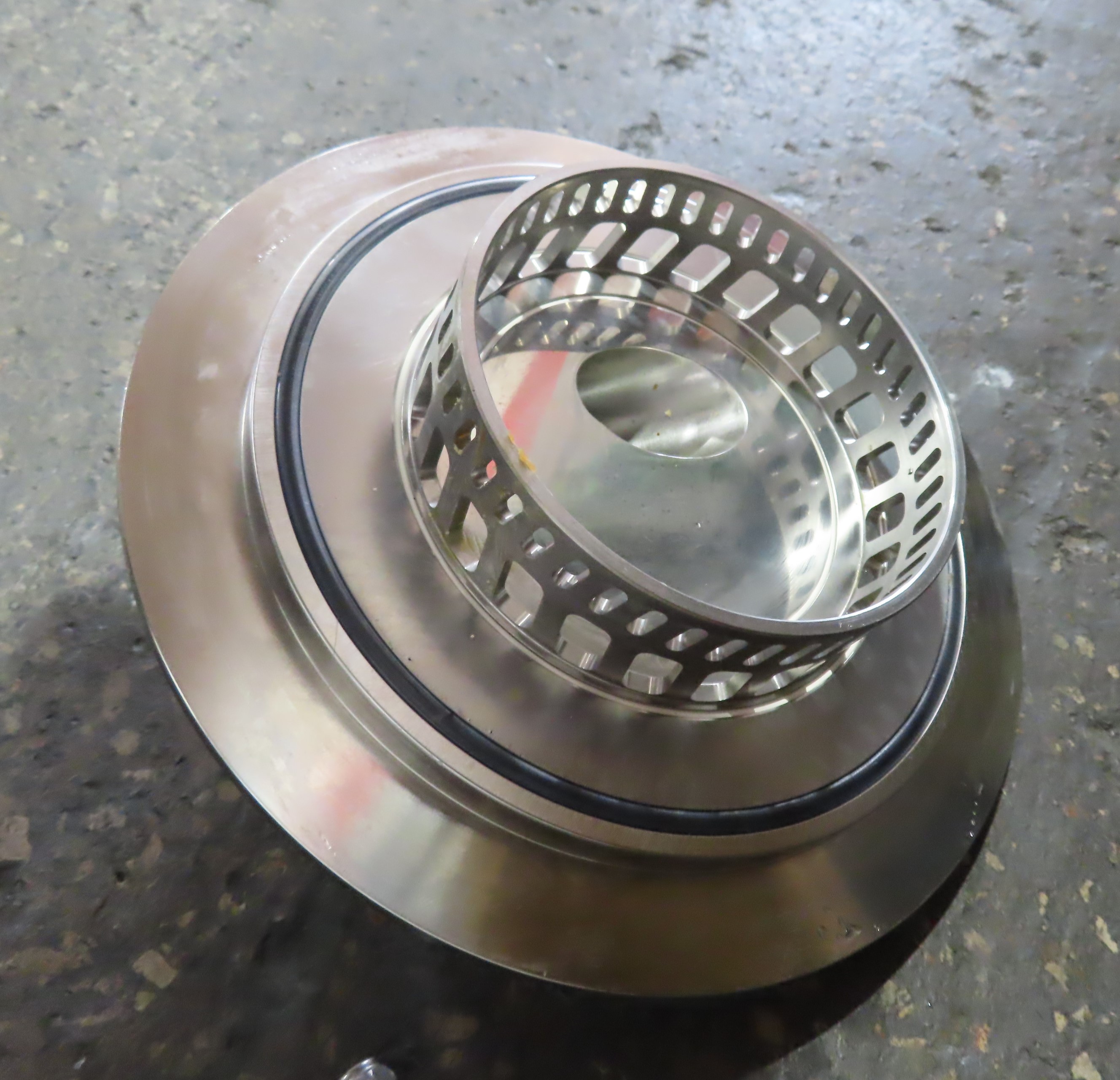

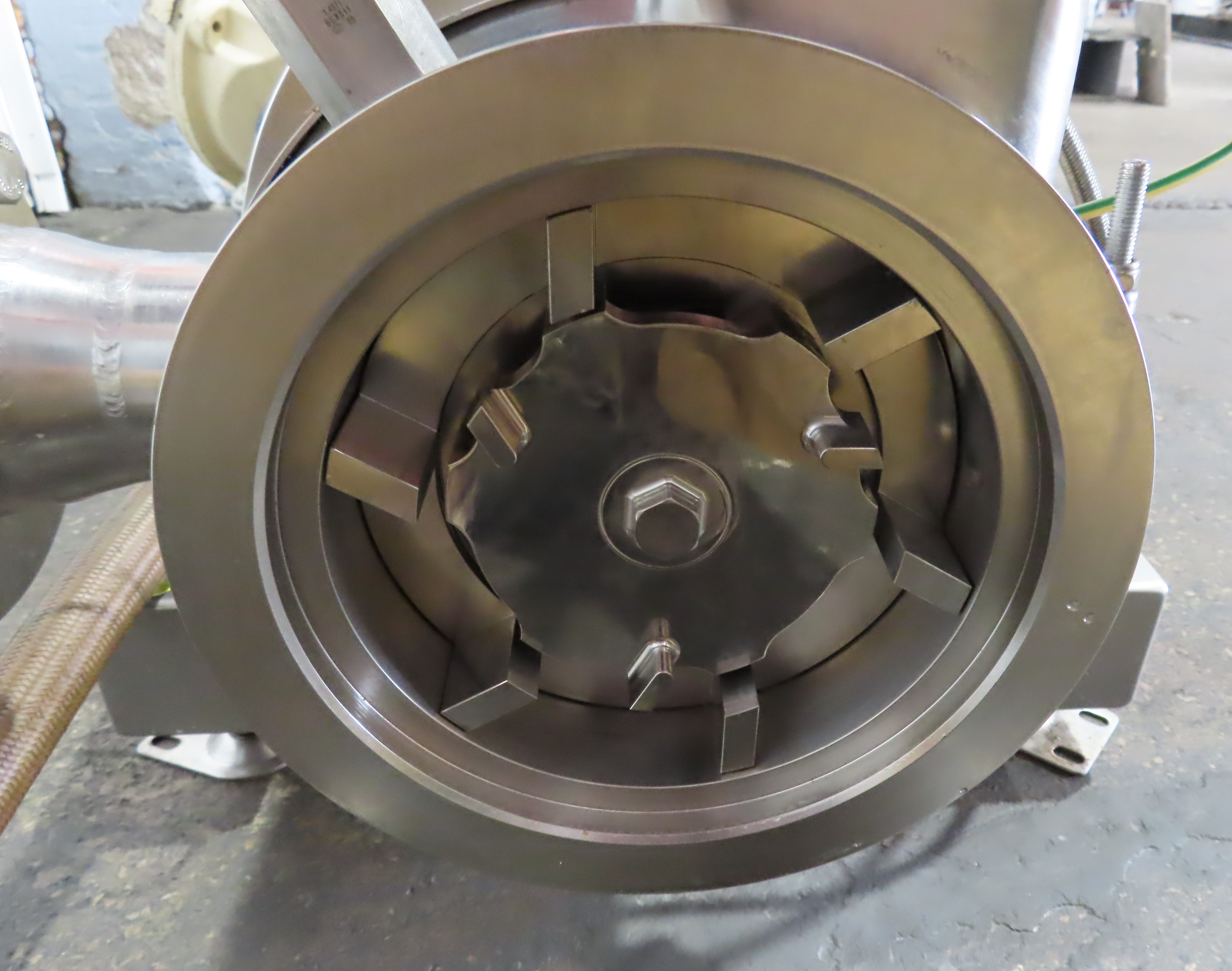

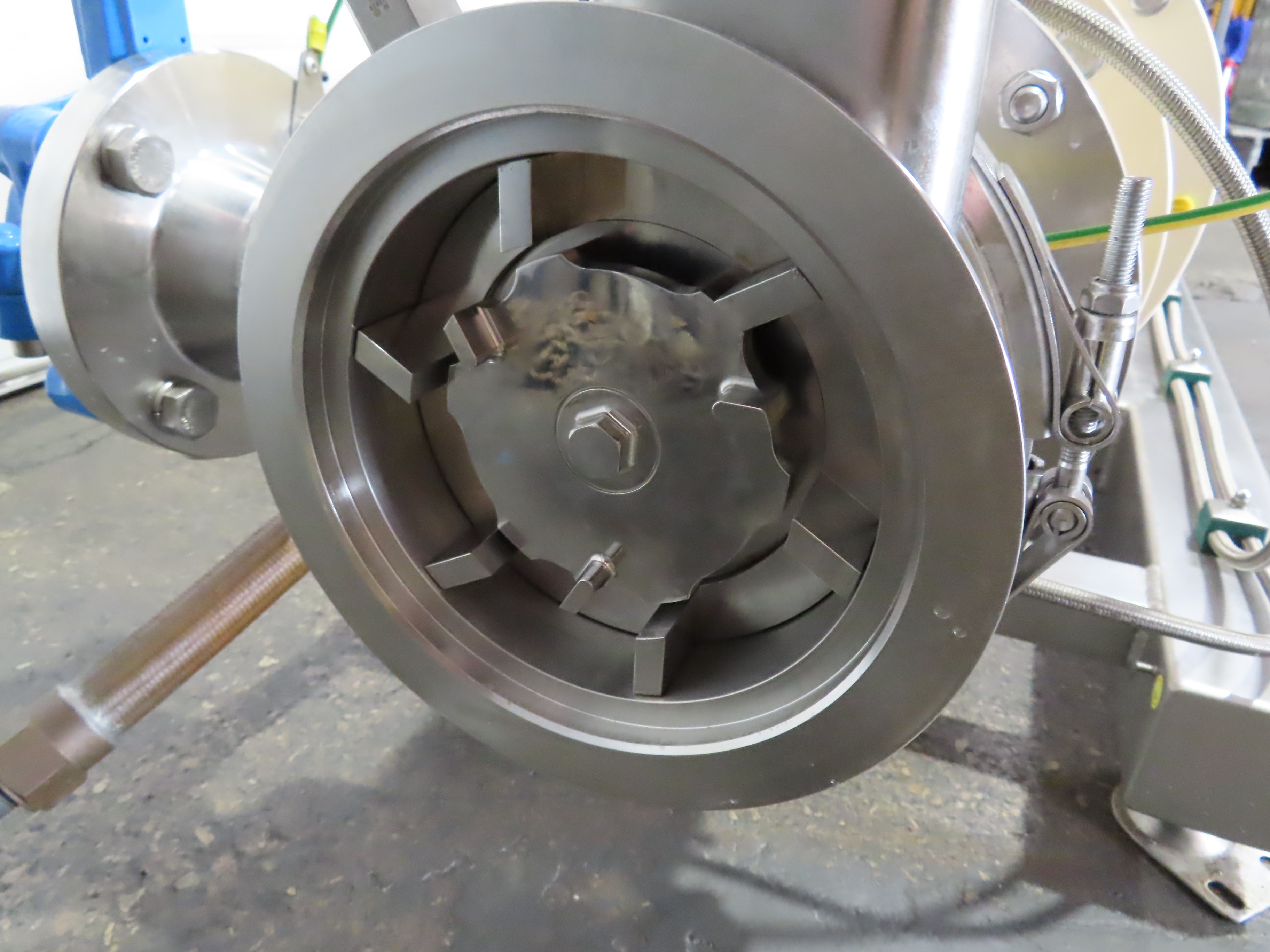

- » 2 part Rotor Hub, 3 short wiper wings, dispersing stator is a double ring stator with 2 rows of slots
- » 1.25" powder inlet, slanted
- » 3" diameter liquid inlet/outlet with valves.
- » Mechanical seal with pump and coolant housing, all plumbed
- » Ystral FSA5 Fluidizer with hopper for feeding powder

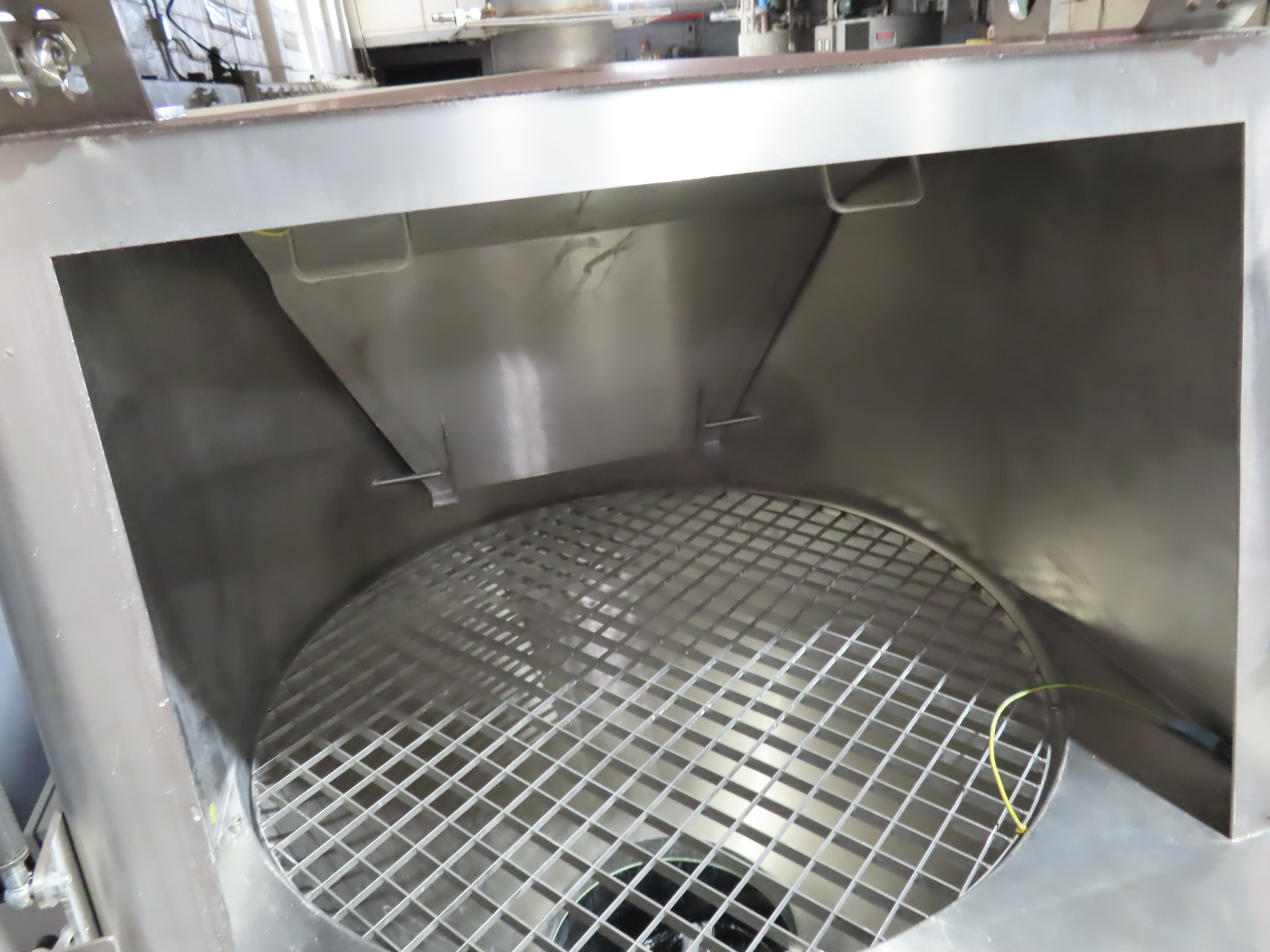

- » Hopper is stainless steel with safety grate and hinged door

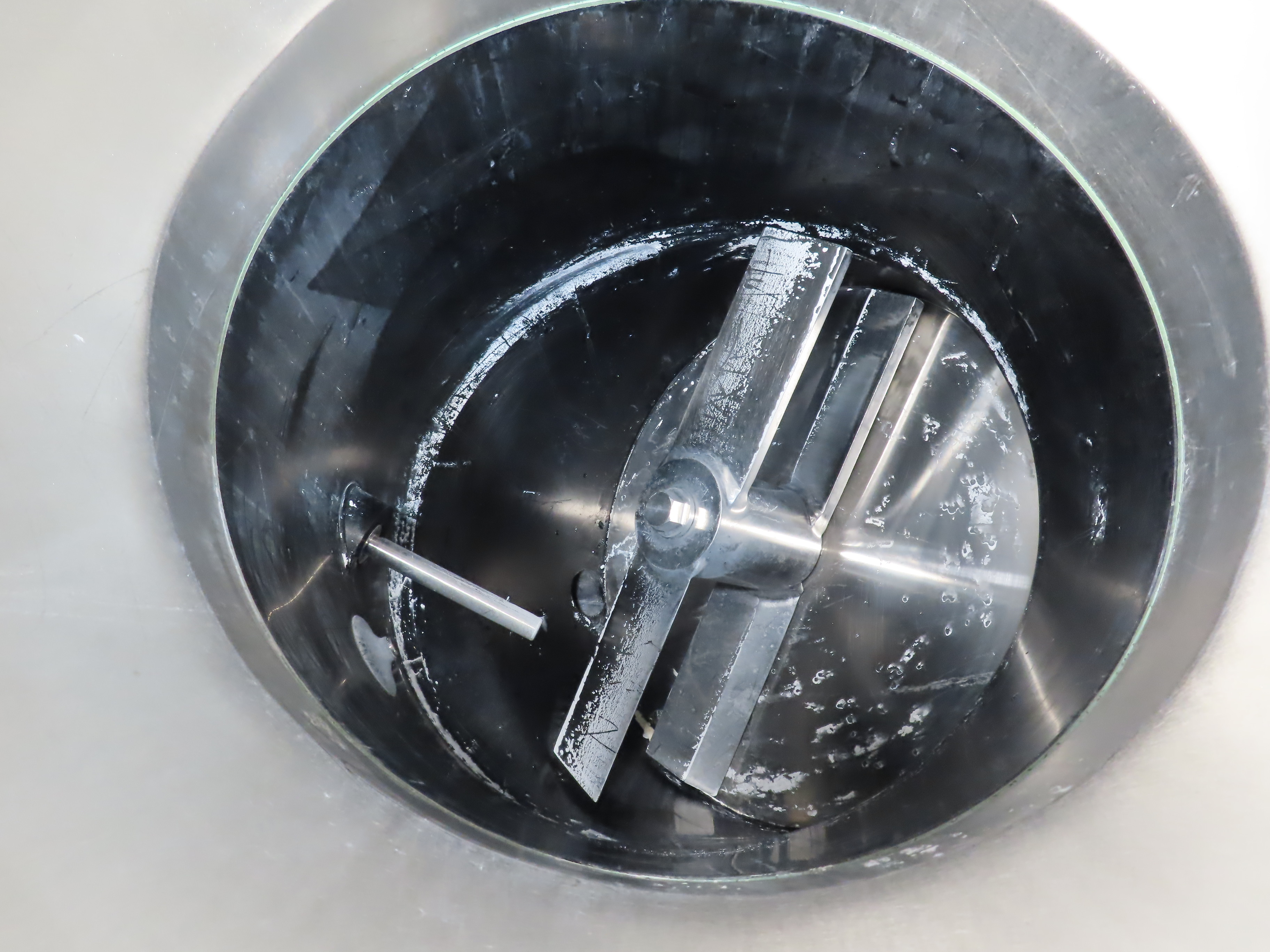

- » Fluidizer is equipped with 4 rotating blades
- » Unit was built in 2016 at a cost of over $130,000.
- »
- »
- »
- »
- »
