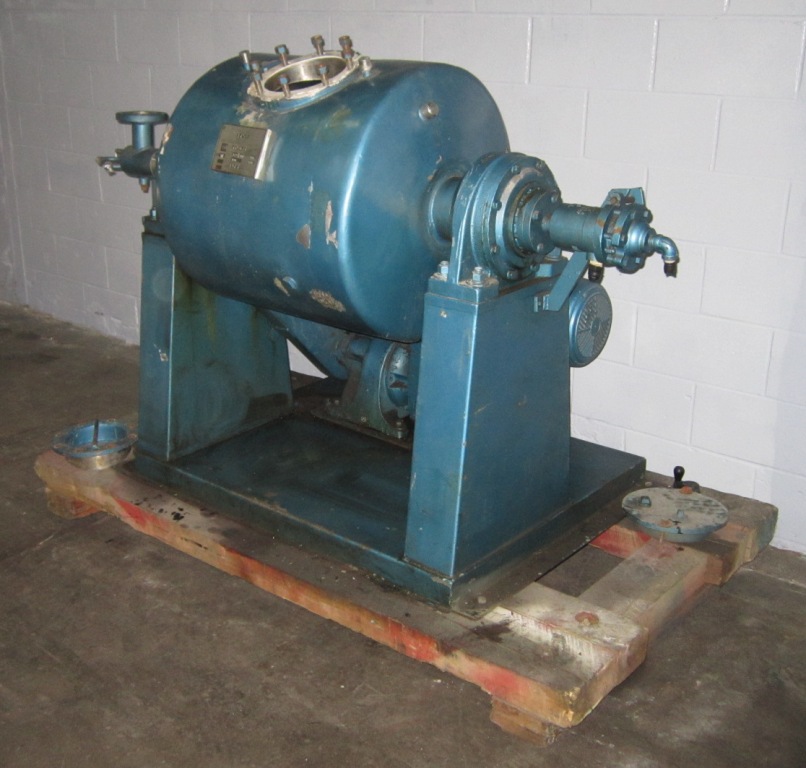

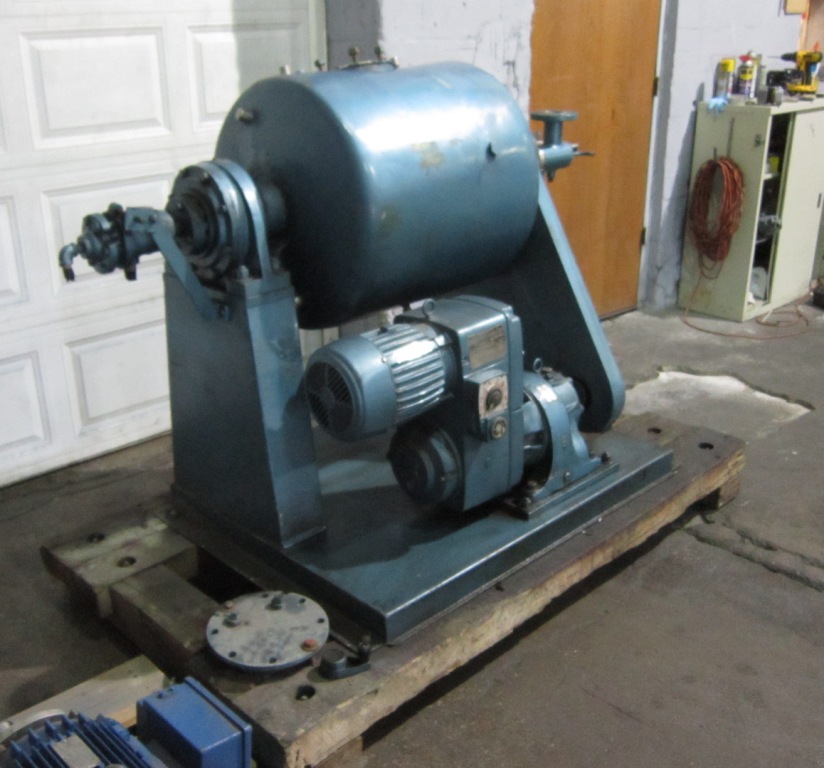

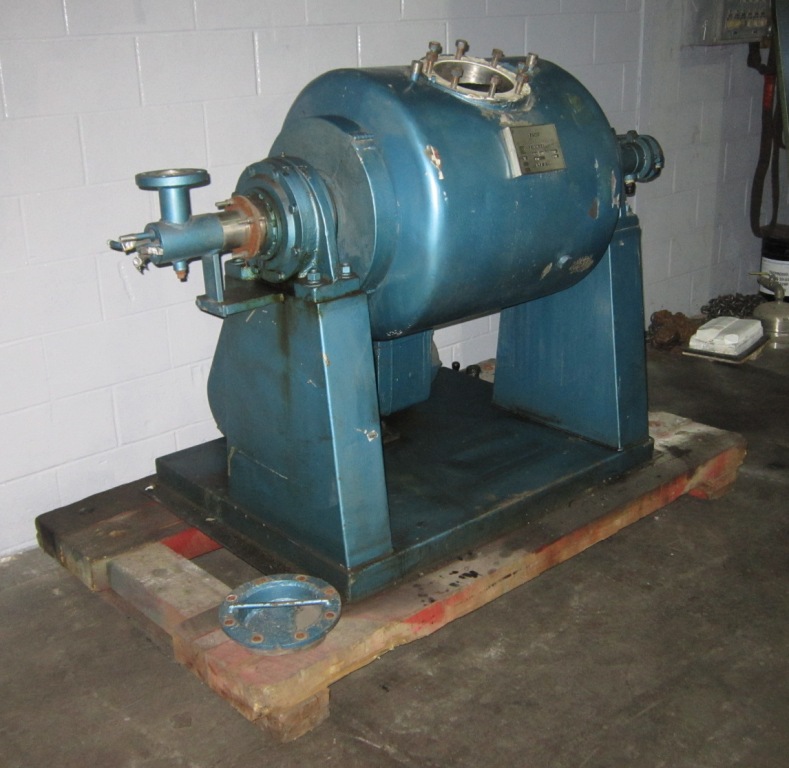

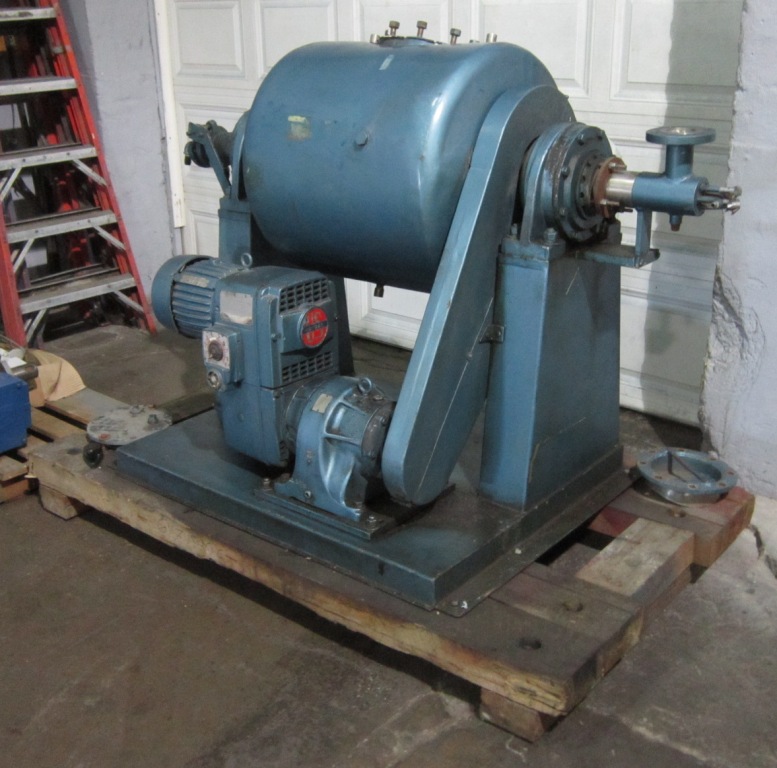

21.5" x 20" Patterson Ball Mill/Reactor

Category: Mills

Product ID: 2739

  • Patterson Stainless  Steel Ball Mill Reactor.
  • Patterson Stainless  Steel Ball Mill Reactor.
  • Patterson Stainless  Steel Ball Mill Reactor.
  • Patterson Stainless  Steel Ball Mill Reactor.
  • Patterson Stainless  Steel Ball Mill Reactor.

Specifications

  • » One (1) used Vacuum Sealable Patterson Ball Mill/Reactor

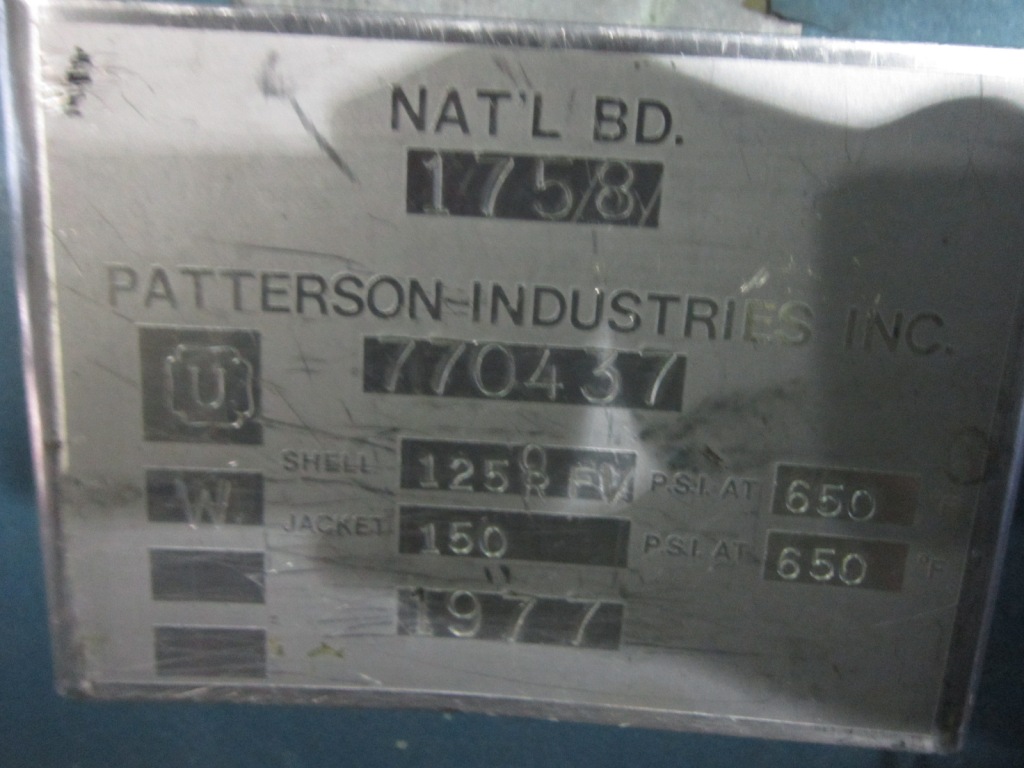

  • » National Board Number 1758
  • » Shell - approved for 125 OR FV PSI at 650 degrees F
  • » Jacket - approved for 150 PSI at 650 degrees F
  • » Serial No. 770437
  • » 21.5" diameter x 20" Straight Wall plus Dished ends
  • » Circular Door - 8" Diameter
  • » Stainless Steel Chamber and Jacket
  • » On Stand With Outbore Bearings

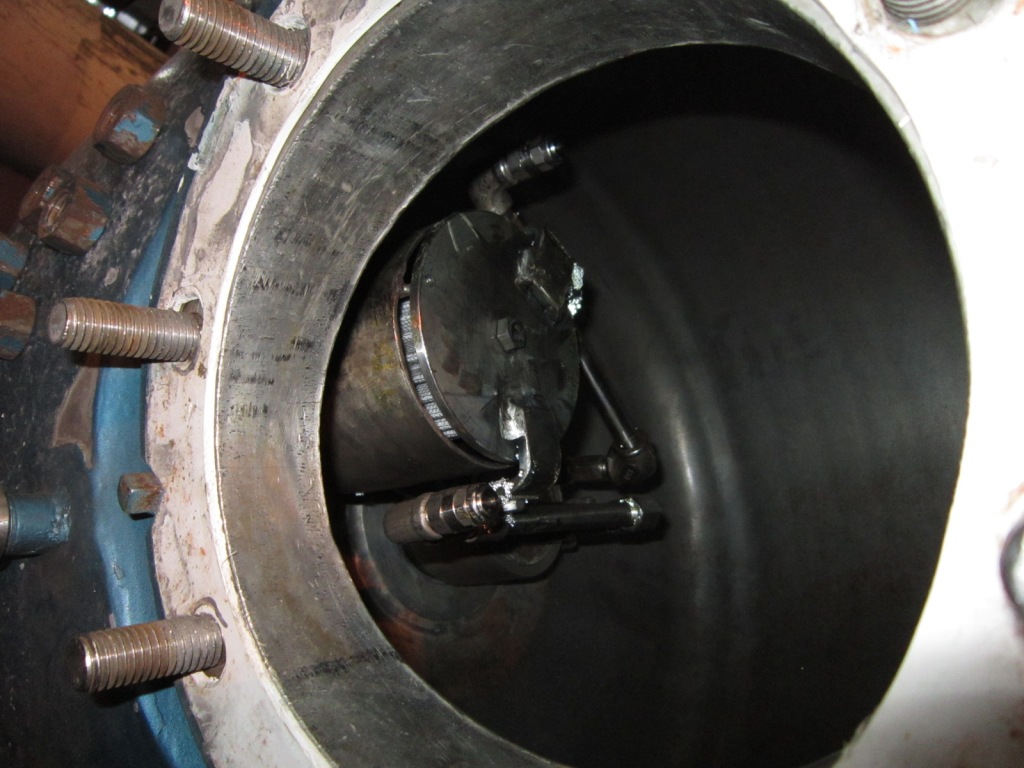

  • » Vacuum Sealable Chamber
  • » Chain Driven with Guard
  • » Built 1977 used as a test unit only.
  • » Rotary Union for transfer of jacket fluid.
  • » Type SNH, 14 PSI

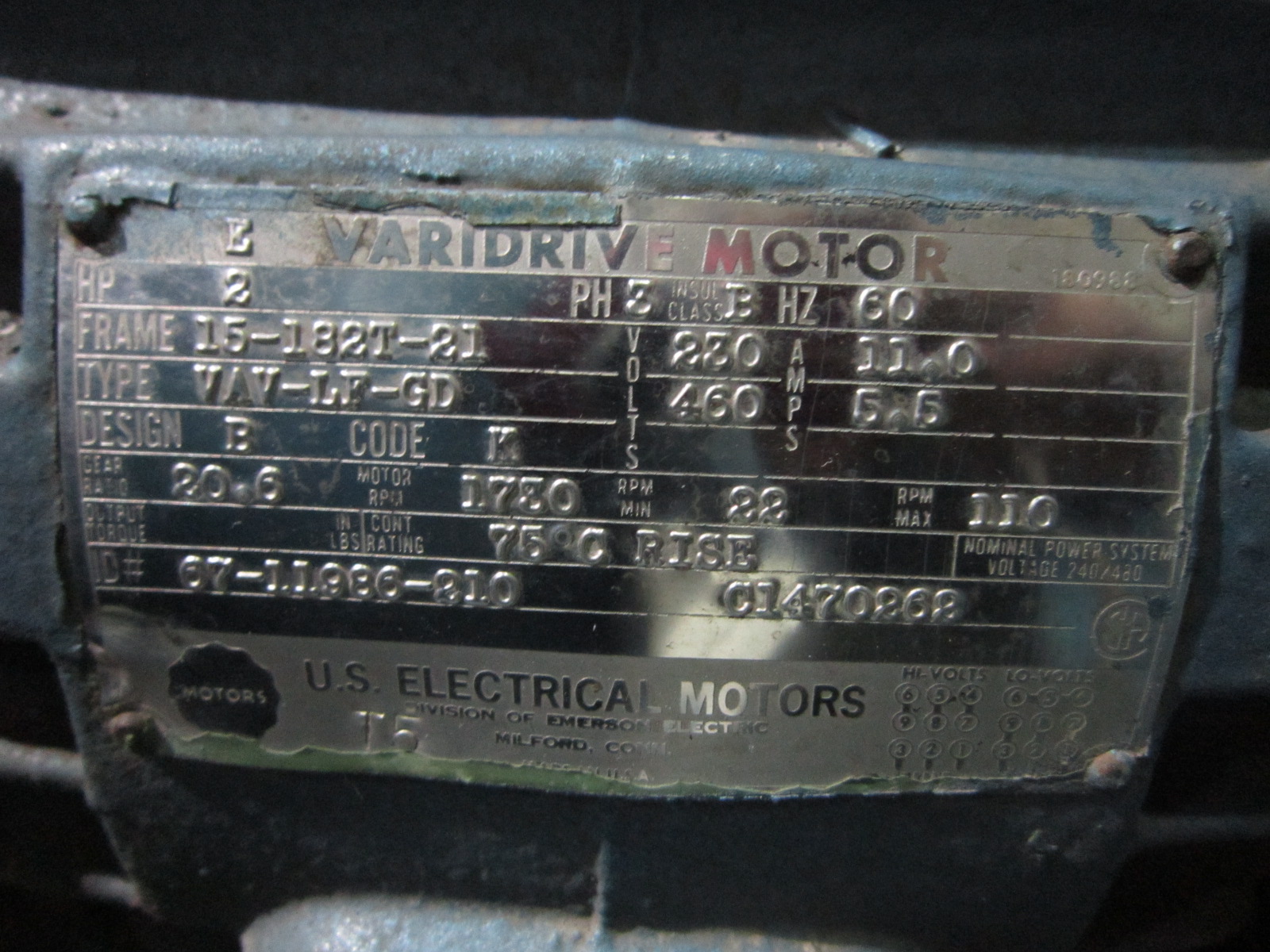

  • » Motor:
  • » US Motor - 8HP, 1730rpm, Varidrive Motor
  • » 230/460 Volt, 11/5.5 Amps
  • » Frame: 15-182T-81
  • » Gear Ratio 20.6, RPM Min 22, RPM Max 110
  • » Design B, Code K
  • » ****Photos of Tags Available - Pictures just not shown here (too many)
