50 gallon Stainless Steel Jacketed Tank, on legs, national board stamped
Category: Stainless Steel jacketed
Product ID: 4822
Specifications
- » One (1) used 50 gallon stainless steel jacketed tank
- » Manufactured by Buckeye Fabricating Co.
- » Serial number: 21197

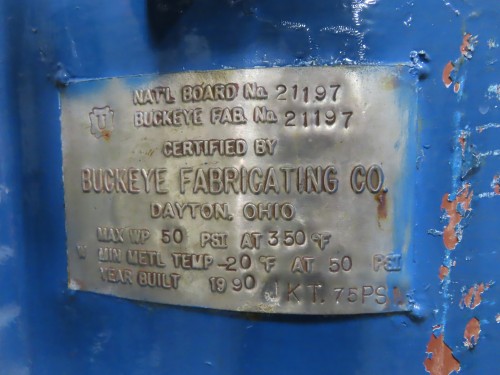

- » National Board # 21197
- » Built 1990
- » Rated Working Pressure: 50 psi internal at 350 F
- » Rated Jacket Pressure: 75 psi
- » Jacketed on straight wall and bottom dish

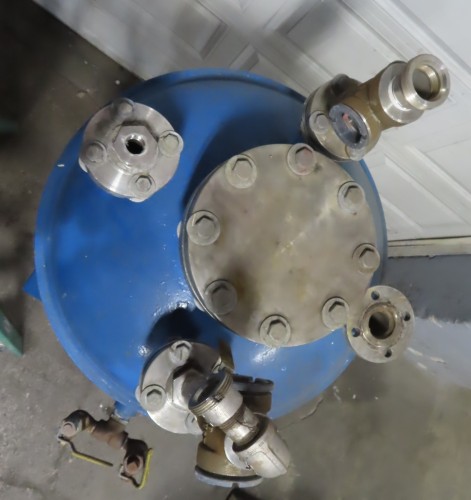

- » Top head included one 6" diameter flanged center inlet and four 1.5" diameter inlets with 4 bolt flanges
- » Center bottom outlet: 1.5" with 4 bolt flange
- » Outlet flange is approximately 36" off ground

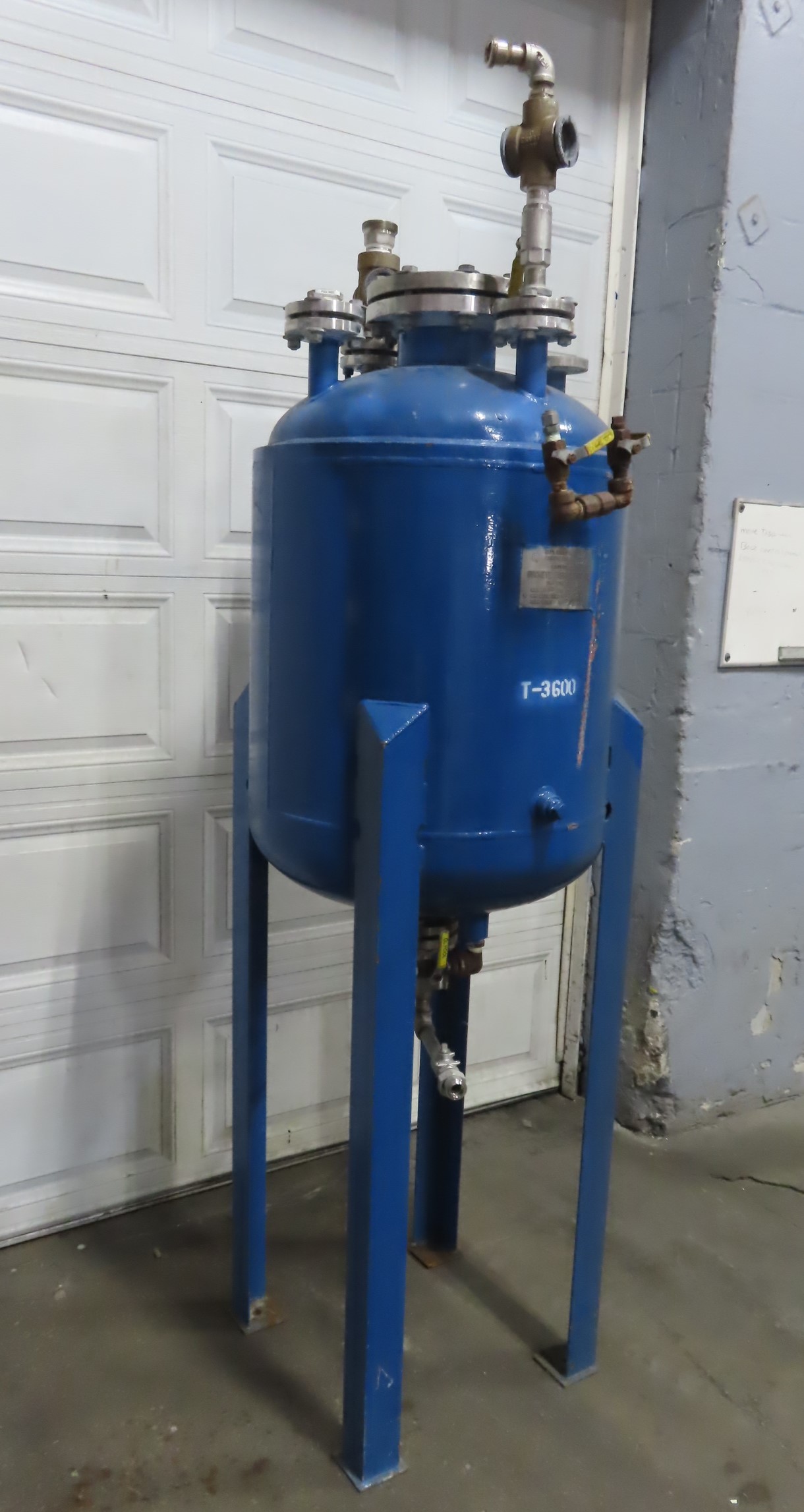

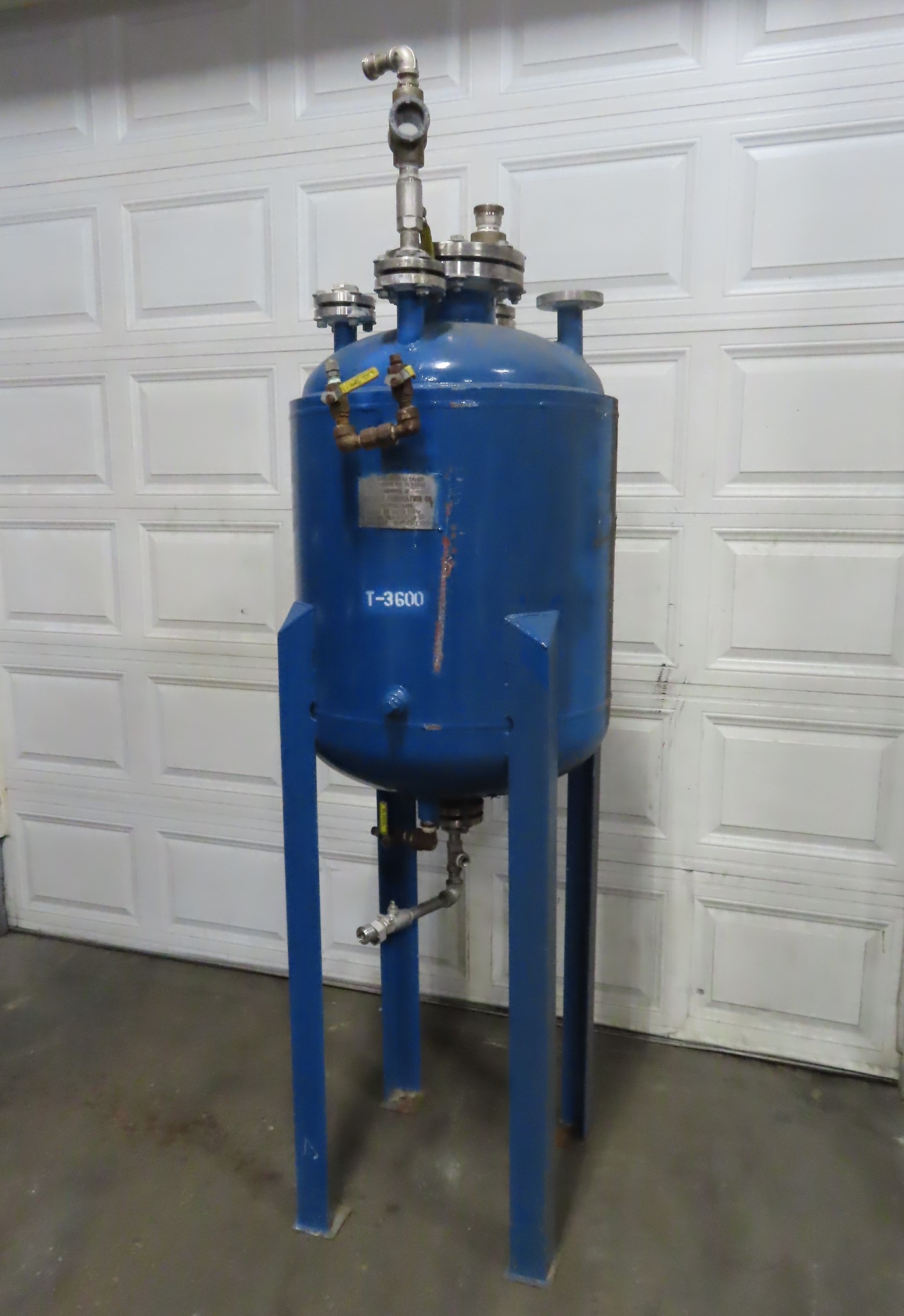

- » Tank is on 4 legs

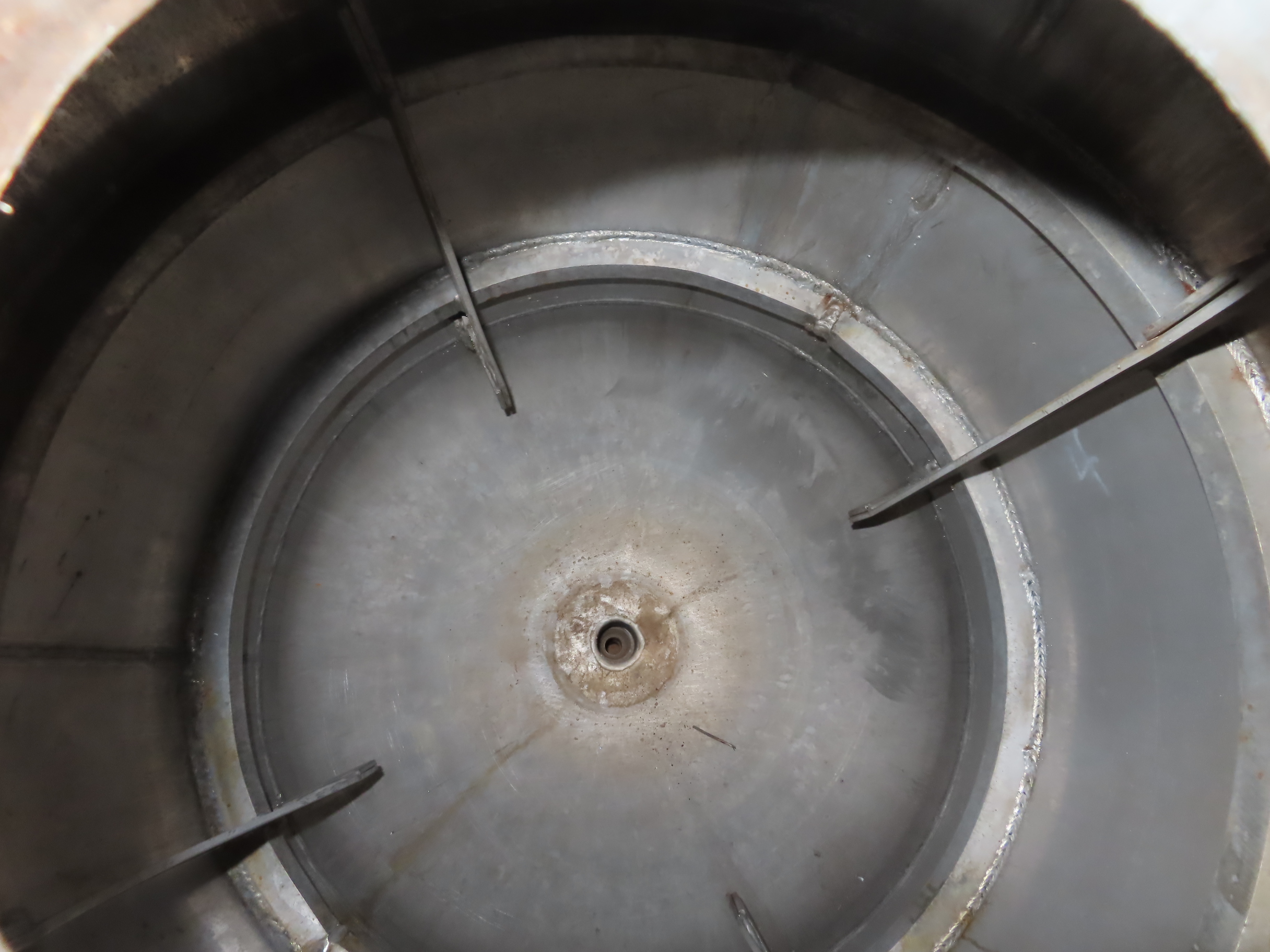

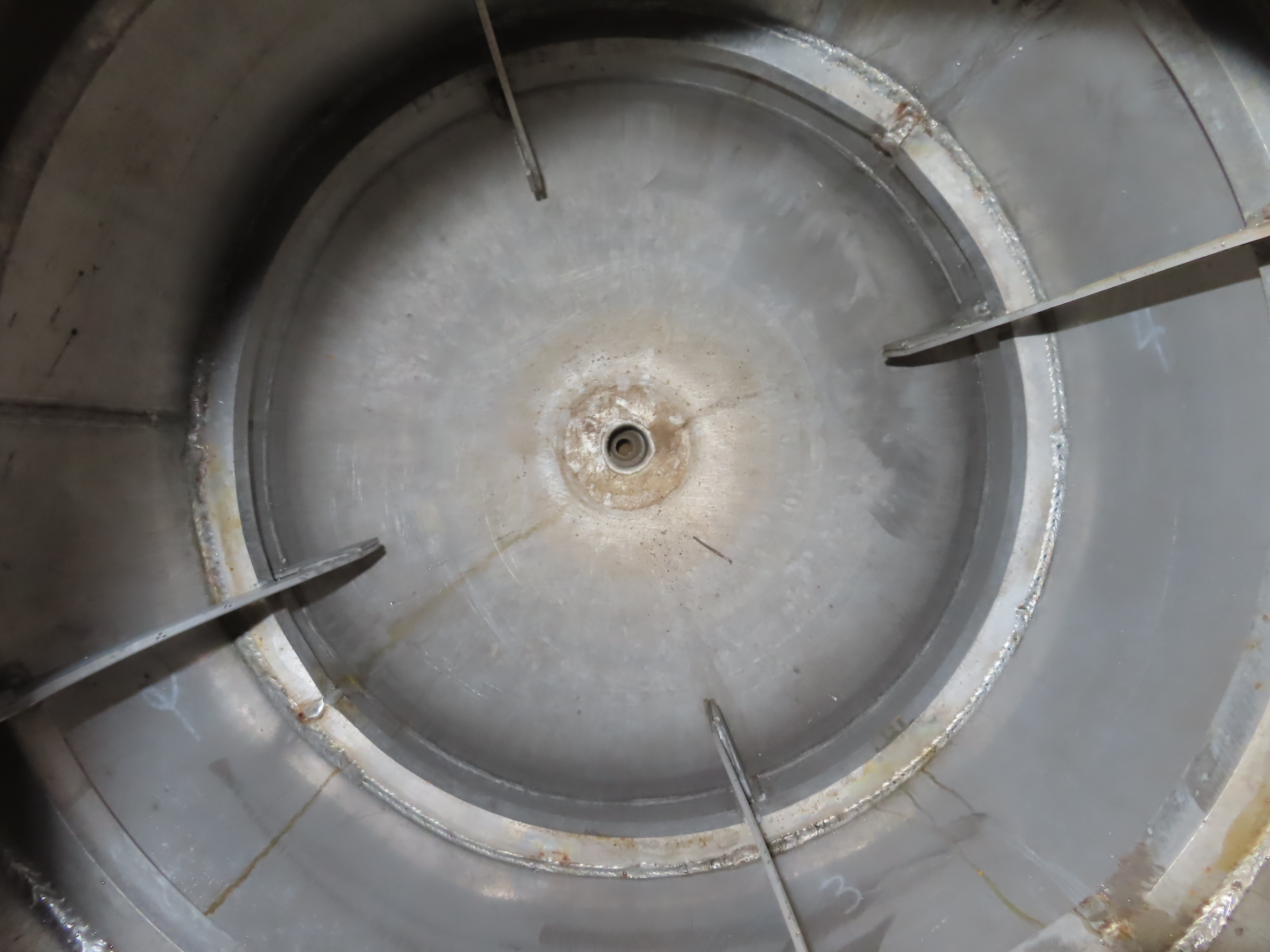

- » Tank is equipped with 4 baffles
- » 24" inside diameter x 24" straight wall
- » Jacket last ran glycol
- » Flanges and plumbing in picture are included
